PE Cosmetic Bottle 80ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1730-80. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 80 ml (2.7 fl oz) |
| Overflow Capacity (brimful) | 92 ml (3.1 fl oz) |
| Bottle Weight | 15 g |
| Neck Finish | 24/410 |
| Total Height | 117 mm |
| Shoulder Height | 93 mm |
| Base (W × D) | 58 × 26.3 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 396 pcs / carton |
| Carton Dimensions (L×W×H) | 55 × 40 × 36 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.

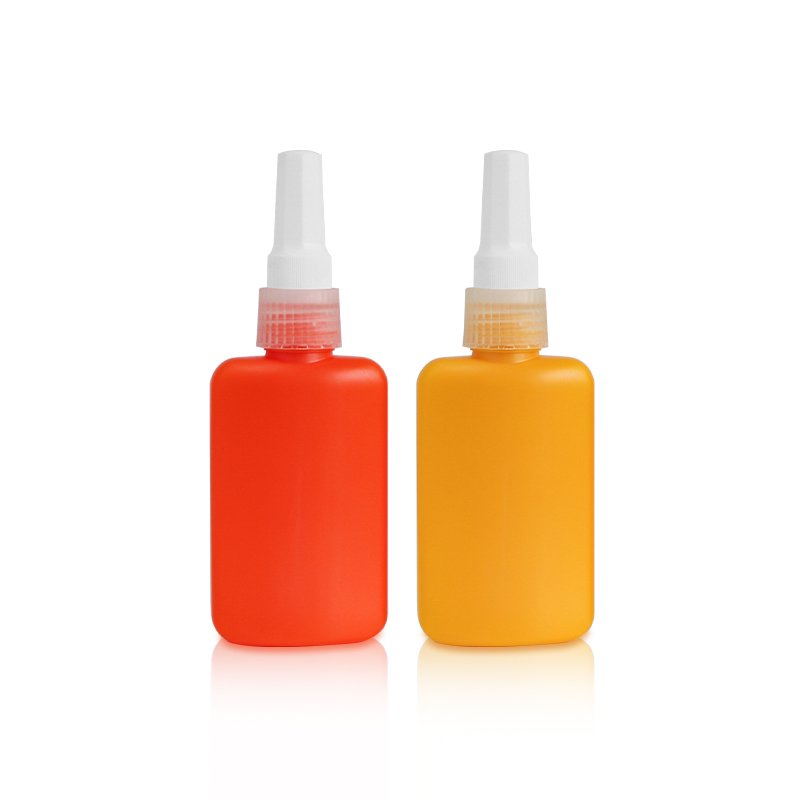

SJE1730-80 is a 80 ml PE / HDPE bottle in the travel & trial size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. It works with standard screw, pump or flip-top closures to match your filling line.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
SJE1730-80 is 117 mm tall on a 58 x 26.3 mm base, so the height is 2.02 times the widest base dimension and the footprint is 15.3 cm².
| Total height | 117 mm |
|---|---|
| Base (W x D) | 58 x 26.3 mm |
| Footprint | 15.3 cm² |
| Height to widest base | 2.02 : 1 |
| Average content per mm | 0.68 ml |
| Empty weight per 100 mm | 12.82 g |
| Empty weight per litre held | 187.5 g |
| Headspace above nominal | 12 ml (13.0%) |
SJT0219-80 is the closest thing we mould to SJE1730-80 at 80 ml: 2 mm shorter; a 48 x 30 mm base against 58 x 26.3 mm here; the same 15 g empty; a 20/410 neck where this one is 24 mm. Moving between the two needs no new tooling.
| SKU | SJT0219-80 |
|---|---|
| Capacity | 80 ml (2.7 fl oz) |
| Height | 115 mm |
| Base | 48 × 30 mm |
| Neck | 20/410 |
| Weight | 15 g |
Stated capacity on SJE1730-80 is 80 ml and the brimful figure is 92 ml, so 12 ml of headspace sits under the rim, inside a body 117 mm tall. Holding the filler at a 90% line puts 72 ml in every unit, so a 500 L batch fills 6,944 of them.
| Batch of product | 80 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 6,944 | 104.2 kg |
| 1,000 L | 13,888 | 208.3 kg |
| 5,000 L | 69,444 | 1,041.7 kg |
5,000 units of SJE1730-80 is 400 L of finished product, and 100,000 units is 8,000 L, which takes 1,500 kg of resin at 15 g a bottle. MOQ is per colour rather than per SKU. 117 mm and 80 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
