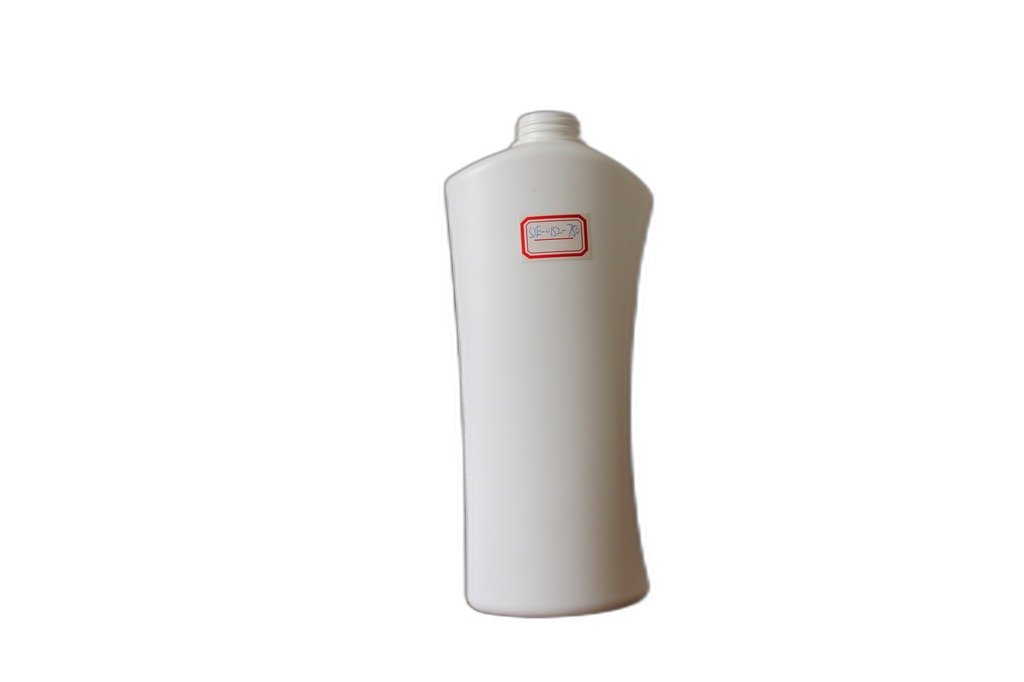

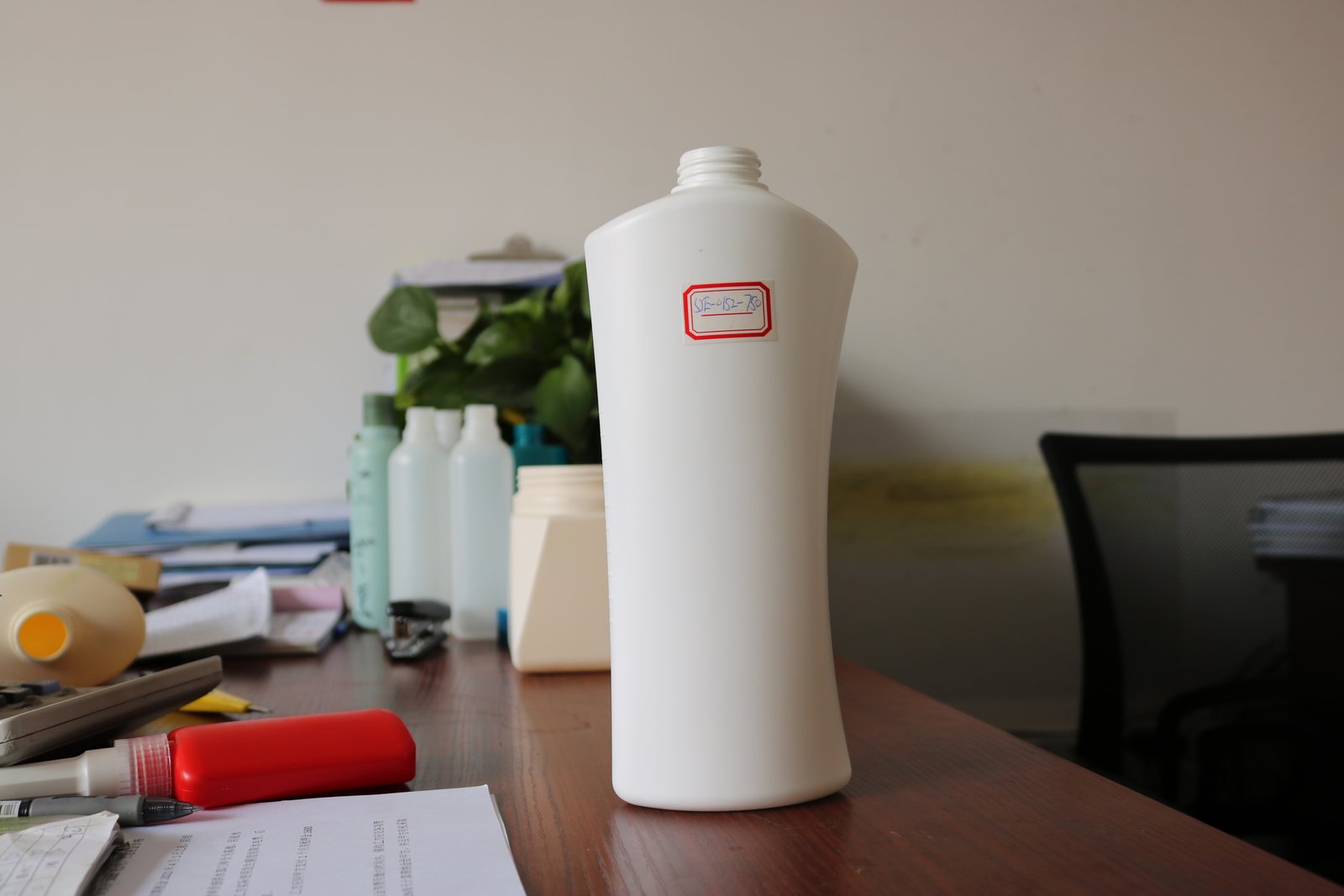

PE Cosmetic Bottle 750ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE0152-750. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 750 ml (25.4 fl oz) |
| Overflow Capacity (brimful) | 781 ml (26.4 fl oz) |
| Bottle Weight | 58 g |
| Neck Finish | 32 mm |
| Total Height | 244 mm |
| Base (W × D) | 91 × 54 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large HDPE bottle: fabric softener, laundry detergent, household cleaners and high-volume refills. HDPE's chemical resistance and durability make it the standard for household-care packaging.
SJE0152-750 is a 750 ml PE / HDPE bottle in the family & refill size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for family-size body care, refill packs and value bundles. The 32 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
SJE0152-750 is 244 mm tall on a 91 x 54 mm base, so the height is 2.68 times the widest base dimension and the footprint is 49.1 cm².
| Total height | 244 mm |
|---|---|
| Base (W x D) | 91 x 54 mm |
| Footprint | 49.1 cm² |
| Height to widest base | 2.68 : 1 |
| Average content per mm | 3.07 ml |
| Empty weight per 100 mm | 23.77 g |
| Empty weight per litre held | 77.3 g |
| Headspace above nominal | 31 ml (4.0%) |
SJE1650-750 is the closest thing we mould to SJE0152-750 at 750 ml: 1 mm shorter; a 104 x 52 mm base against 91 x 54 mm here; 10 g heavier. Moving between the two needs no new tooling.
| SKU | SJE1650-750 |
|---|---|
| Capacity | 750 ml (25.4 fl oz) |
| Height | 243 mm |
| Base | 104 × 52 mm |
| Neck | 32/410 |
| Weight | 68 g |
Stated capacity on SJE0152-750 is 750 ml and the brimful figure is 781 ml, so 31 ml of headspace sits under the rim, inside a body 244 mm tall. Holding the filler at a 90% line puts 675 ml in every unit, so a 500 L batch fills 740 of them.
| Batch of product | 750 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 740 | 42.9 kg |
| 1,000 L | 1,481 | 85.9 kg |
| 5,000 L | 7,407 | 429.6 kg |
5,000 units of SJE0152-750 is 3,750 L of finished product, and 100,000 units is 75,000 L, which takes 5,800 kg of resin at 58 g a bottle. MOQ is per colour rather than per SKU. 244 mm and 750 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 750 ml ≈ 25.4 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 91 × 54 mm base (1.69 : 1 width-to-depth). Two parallel 91 mm faces carry front and back artwork, while the narrow 54 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.68 : 1 (244 mm tall, 91 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 750 ml stated capacity inside a 1,199 ml rectangular outline — 63 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 58 g body weight = 7.7 g per 100 ml. Lightweight range: lower resin cost per unit and cheaper freight at equal carton count. |
| Label & decoration zone | |
| Front panel width | 91 mm flat face → artwork up to 83 mm wide with a 4 mm safety margin each side. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 750 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 750 ml model (730 ml, 700 ml, 800 ml, 800 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1670-800 | 800 ml | 76 g | Ø40 mm | 243 mm | +50 ml larger |
| SJE1759-800 | 800 ml | 75 g | Ø32 mm | 216 mm | +50 ml larger · same neck |
| SJE0152-750 | 750 ml | 58 g | Ø32 mm | 244 mm | This model |
| SJE1812-730 | 730 ml | 65 g | Ø32 mm | 190 mm | 20 ml smaller · same neck |
| SJE1901-700 | 700 ml | 72 g | Ø32 mm | 237 mm | 50 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
