PE Cosmetic Bottle 125ml
Download the complete PE / HDPE bottle catalog PDF.

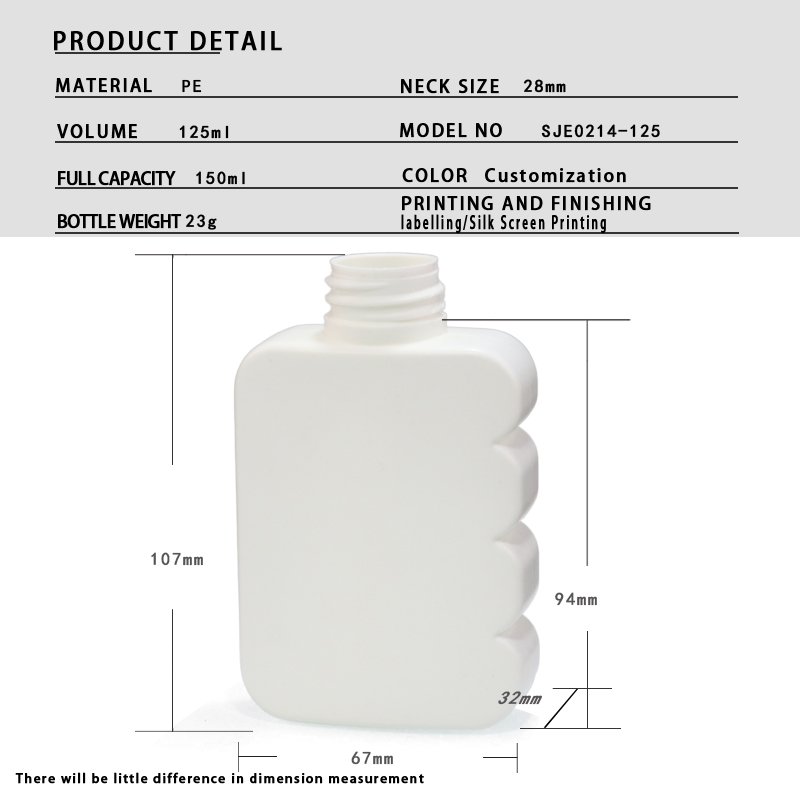

Full engineering parameters for SJE0214-125. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 125 ml (4.2 fl oz) |
| Bottle Weight | 23 g |
| Neck Finish | 28 mm |
| Total Height | 107 mm |
| Shoulder Height | 94 mm |
| Base (W × D) | 67 × 32 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE0214-125 is a 125 ml PE / HDPE bottle in the daily face-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so it adapts to pump, spray or screw formats without mold so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
SJE0214-125 is 107 mm tall on a 67 x 32 mm base, so the height is 1.60 times the widest base dimension and the footprint is 21.4 cm².
| Total height | 107 mm |
|---|---|
| Base (W x D) | 67 x 32 mm |
| Footprint | 21.4 cm² |
| Height to widest base | 1.60 : 1 |
| Average content per mm | 1.17 ml |
| Empty weight per 100 mm | 21.50 g |
| Empty weight per litre held | 184 g |
SJE0034-125 is the closest thing we mould to SJE0214-125 at 125 ml: 27 mm taller; a 58 x 30 mm base against 67 x 32 mm here; 6 g lighter; a 18 mm neck where this one is 28 mm. Moving between the two needs no new tooling.
| SKU | SJE0034-125 |
|---|---|
| Capacity | 125 ml (4.2 fl oz) |
| Height | 134 mm |
| Base | 58 × 30 mm |
| Neck | 18 mm |
| Weight | 17 g |
Stated capacity on SJE0214-125 is 125 ml, inside a body 107 mm tall. Holding the filler at a 90% line puts 112.5 ml in every unit, so a 500 L batch fills 4,444 of them.
| Batch of product | 125 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 4,444 | 102.2 kg |
| 1,000 L | 8,888 | 204.4 kg |
| 5,000 L | 44,444 | 1,022.2 kg |
5,000 units of SJE0214-125 is 625 L of finished product, and 100,000 units is 12,500 L, which takes 2,300 kg of resin at 23 g a bottle. MOQ is per colour rather than per SKU. 107 mm and 125 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 125 ml ≈ 4.2 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 67 × 32 mm base (2.09 : 1 width-to-depth). Two parallel 67 mm faces carry front and back artwork, while the narrow 32 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.60 : 1 (107 mm tall, 67 mm wide). Low-profile, wide-footed format: the most stable of the three under high-speed filling and the easiest to stack. |
| Fill-to-outline ratio | 125 ml stated capacity inside a 229 ml rectangular outline — 54 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 23 g body weight = 18.4 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 89 mm — from the base to the 94 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 67 mm flat face → artwork up to 59 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 59 × 89 mm (W × H) flat label on each face, or a wrap label over the 32 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 125 ml the Ø28 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 125 ml model (120 ml, 120 ml, 130 ml, 150 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0027-150 | 150 ml | 22 g | Ø28 mm | 107 mm | +25 ml larger · same neck |
| SJE0162-130 | 130 ml | 19 g | Ø20 mm | 127 mm | +5 ml larger |
| SJE0214-125 | 125 ml | 23 g | Ø28 mm | 107 mm | This model |
| SJE1905-120 | 120 ml | 21 g | Ø20 mm | 109 mm | 5 ml smaller |
| SJE1894-120 | 120 ml | 22 g | Ø24 mm | 129 mm | 5 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
