PETG Cosmetic Bottle 500ml
Download the complete PET bottle catalog PDF for offline viewing.

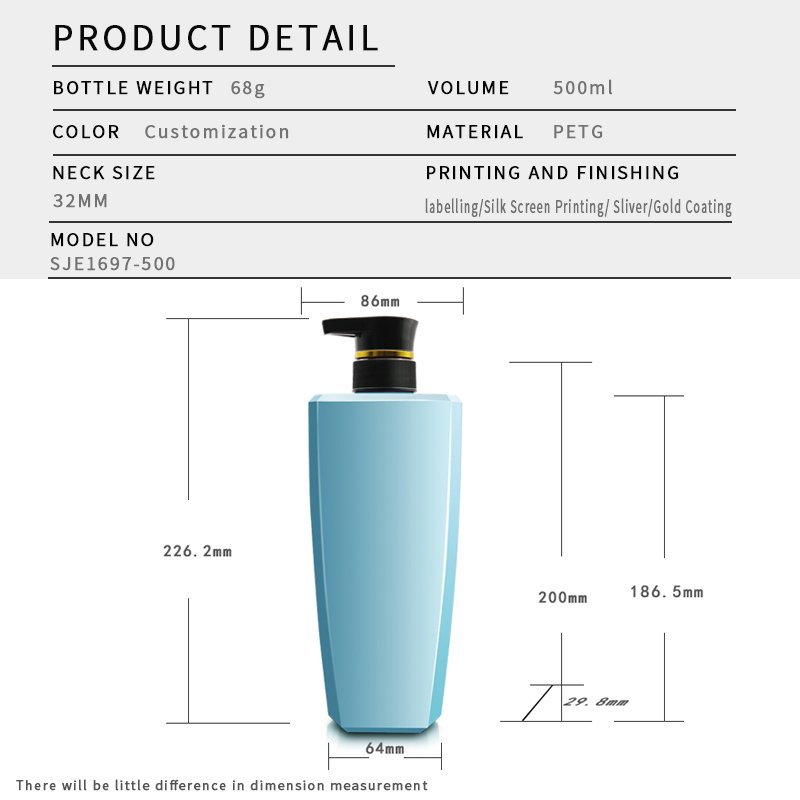

Full engineering parameters for SJE1697-500. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 500 ml (16.9 fl oz) |
| Overflow Capacity (brimful) | 552 ml (18.7 fl oz) |
| Bottle Weight | 68 g |
| Neck Finish | 32/410 |
| Total Height | 241 mm |
| Shoulder Height | 187 mm |
| Base (W × D) | 61 × 50 mm |
| Material & Compliance | |
| Material | PETG |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 196 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 45 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this PETG bottle: premium skincare, fragrance, treatment lines and cosmetic products where glass-like clarity is part of the shelf appeal. PETG also suits formulas with higher alcohol or essential-oil content.
SJE1697-500 is a 500 ml PETG bottle in the body & hair-care size range. It suits premium skincare, high-clarity serums, boutique cosmetics and display jars, and is commonly specified for body lotions, shampoos, conditioners and shower gels. It works with standard screw, pump or flip-top closures to match your filling line.
For branding, UV printing, silk-screen and hot-stamp with no surface pretreatment are available on this PETG body. Pair it with a screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
SJE1697-500 is 241 mm tall on a 61 x 50 mm base, so the height is 3.95 times the widest base dimension and the footprint is 30.5 cm².
| Total height | 241 mm |
|---|---|
| Base (W x D) | 61 x 50 mm |
| Footprint | 30.5 cm² |
| Height to widest base | 3.95 : 1 |
| Average content per mm | 2.07 ml |
| Empty weight per 100 mm | 28.22 g |
| Empty weight per litre held | 136 g |
| Headspace above nominal | 52 ml (9.4%) |
SJE1663-500 is the closest thing we mould to SJE1697-500 at 500 ml: 3 mm shorter; a 64 x 40 mm base against 61 x 50 mm here; 13 g lighter. Moving between the two needs no new tooling.
| SKU | SJE1663-500 |
|---|---|
| Capacity | 500 ml (16.9 fl oz) |
| Height | 238 mm |
| Base | 64 × 40 mm |
| Neck | 32 mm |
| Weight | 55 g |
Stated capacity on SJE1697-500 is 500 ml and the brimful figure is 552 ml, so 52 ml of headspace sits under the rim, inside a body 241 mm tall. Holding the filler at a 90% line puts 450 ml in every unit, so a 500 L batch fills 1,111 of them.
| Batch of product | 500 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 1,111 | 75.5 kg |
| 1,000 L | 2,222 | 151.1 kg |
| 5,000 L | 11,111 | 755.5 kg |
5,000 units of SJE1697-500 is 2,500 L of finished product, and 100,000 units is 50,000 L, which takes 6,800 kg of resin at 68 g a bottle. MOQ is per colour rather than per SKU. 241 mm and 500 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
