PETG Cosmetic Bottle 500ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJE1687-500. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 500 ml (16.9 fl oz) |
| Bottle Weight | 60 g |
| Neck Finish | 28 mm |
| Total Height | 174 mm |
| Shoulder Height | 155 mm |
| Base (W × D) | 100 × 47 mm |
| Material & Compliance | |
| Material | PETG |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this PETG bottle: premium skincare, fragrance, treatment lines and cosmetic products where glass-like clarity is part of the shelf appeal. PETG also suits formulas with higher alcohol or essential-oil content.
SJE1687-500 is a 500 ml PETG bottle in the body & hair-care size range. It suits premium skincare, high-clarity serums, boutique cosmetics and display jars, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, silk-screen and hot-stamp with no surface pretreatment are available on this PETG body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

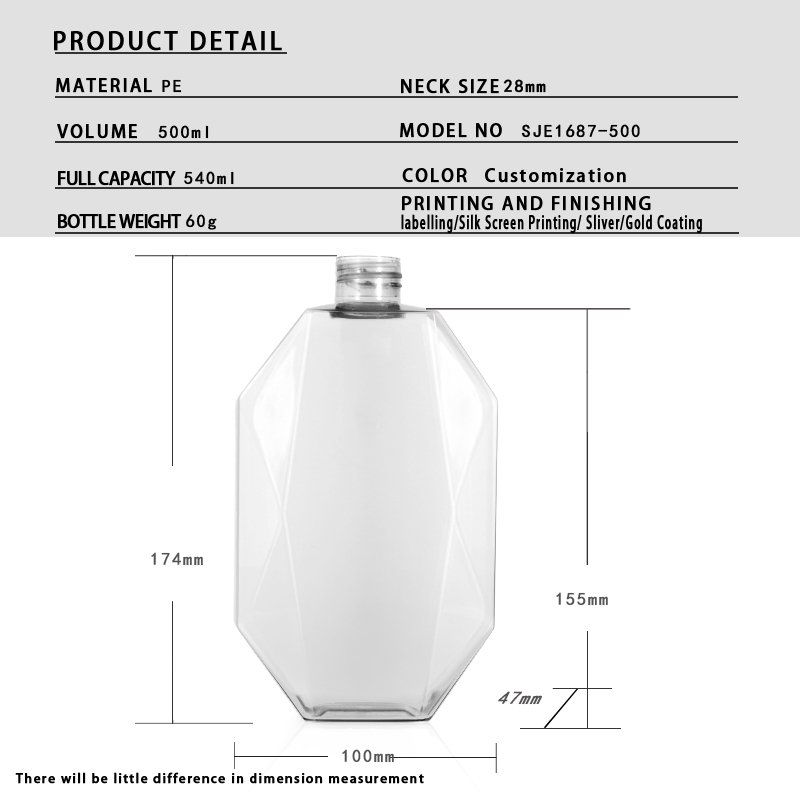

SJE1687-500 is 174 mm tall on a 100 x 47 mm base, so the height is 1.74 times the widest base dimension and the footprint is 47.0 cm².
| Total height | 174 mm |
|---|---|
| Base (W x D) | 100 x 47 mm |
| Footprint | 47.0 cm² |
| Height to widest base | 1.74 : 1 |
| Average content per mm | 2.87 ml |
| Empty weight per 100 mm | 34.48 g |
| Empty weight per litre held | 120 g |
SJT0293-500 is the closest thing we mould to SJE1687-500 at 500 ml: the same height to within 1 mm; a 100 x 48 mm base against 100 x 47 mm here; 5 g lighter. Moving between the two needs no new tooling.
| SKU | SJT0293-500 |
|---|---|
| Capacity | 500 ml (16.9 fl oz) |
| Height | 174 mm |
| Base | 100 × 48 mm |
| Neck | 28/410 |
| Weight | 55 g |
Stated capacity on SJE1687-500 is 500 ml, inside a body 174 mm tall. Holding the filler at a 90% line puts 450 ml in every unit, so a 500 L batch fills 1,111 of them.
| Batch of product | 500 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 1,111 | 66.7 kg |
| 1,000 L | 2,222 | 133.3 kg |
| 5,000 L | 11,111 | 666.7 kg |
5,000 units of SJE1687-500 is 2,500 L of finished product, and 100,000 units is 50,000 L, which takes 6,000 kg of resin at 60 g a bottle. MOQ is per colour rather than per SKU. 174 mm and 500 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PETG, 500 ml ≈ 16.9 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 100 × 47 mm base (2.13 : 1 width-to-depth). Two parallel 100 mm faces carry front and back artwork, while the narrow 47 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.74 : 1 (174 mm tall, 100 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 500 ml stated capacity inside a 818 ml rectangular outline — 61 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 60 g body weight = 12.0 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 150 mm — from the base to the 155 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 100 mm flat face → artwork up to 92 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 92 × 150 mm (W × H) flat label on each face, or a wrap label over the 47 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 500 ml the Ø28 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PETG formats to this 500 ml model (400 ml, 400 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1687-500 | 500 ml | 60 g | Ø28 mm | 174 mm | This model |
| SJE1793-400 | 400 ml | 47 g | Ø28 mm | 163 mm | 100 ml smaller · same neck |
| SJE1717-400 | 400 ml | — g | Ø— mm | — mm | 100 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
