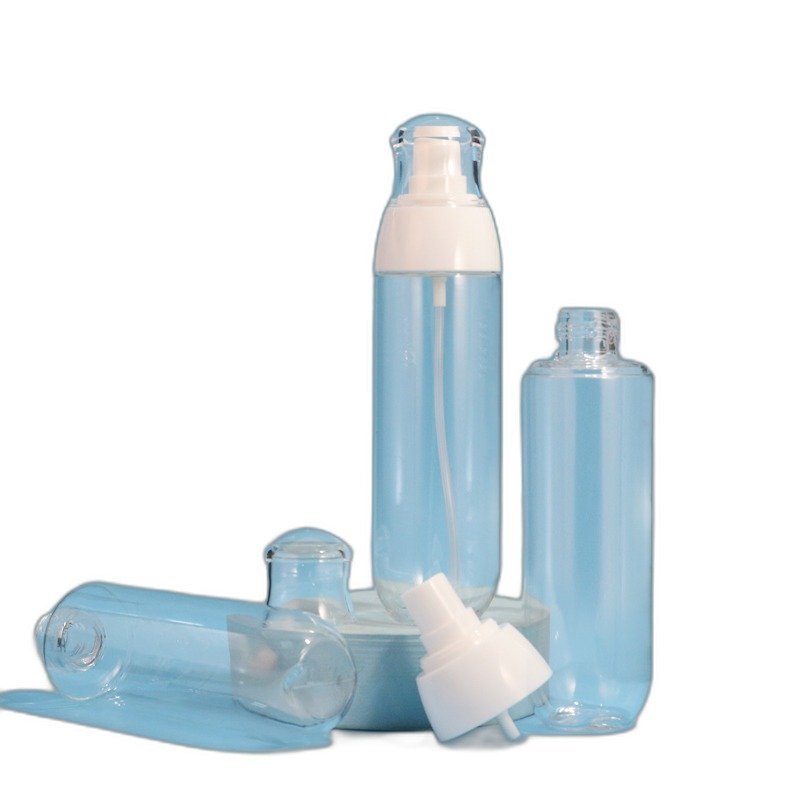

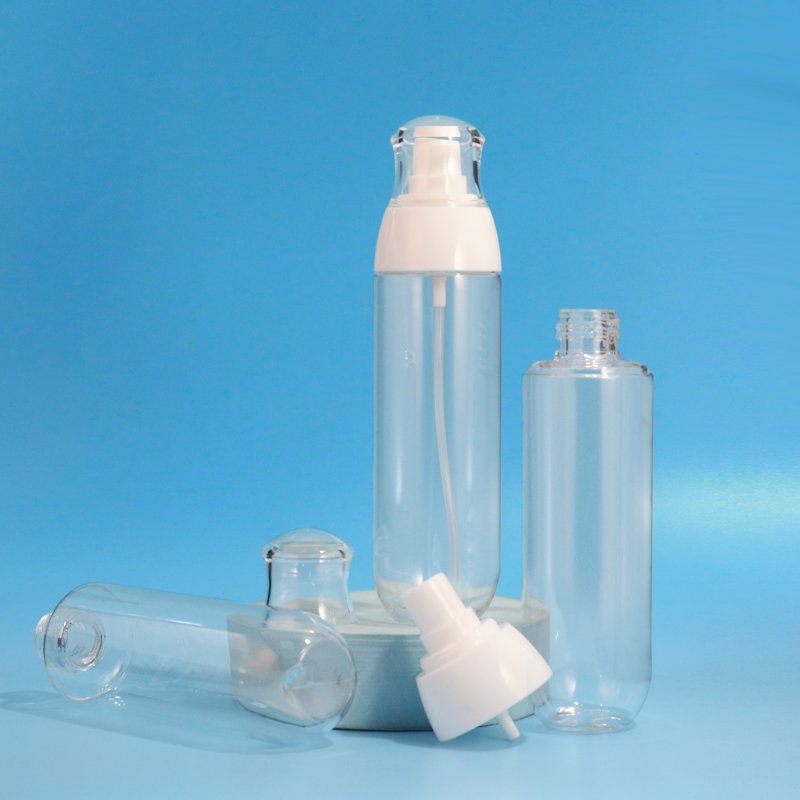

PETG Cosmetic Bottle 100ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJE1822-100. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 100 ml (3.4 fl oz) |
| Bottle Weight | 23 g |
| Neck Finish | 20 mm |
| Total Height | 127 mm |
| Shoulder Height | 114 mm |
| Base (W × D) | 40 × 40 mm |
| Material & Compliance | |
| Material | PETG |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 300 pcs / carton |
| Carton Dimensions (L×W×H) | 41 × 40.5 × 39.5 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this PETG bottle: premium skincare, fragrance, treatment lines and cosmetic products where glass-like clarity is part of the shelf appeal. PETG also suits formulas with higher alcohol or essential-oil content.
SJE1822-100 is a 100 ml PETG bottle in the travel & trial size range. It suits premium skincare, high-clarity serums, boutique cosmetics and display jars, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, silk-screen and hot-stamp with no surface pretreatment are available on this PETG body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

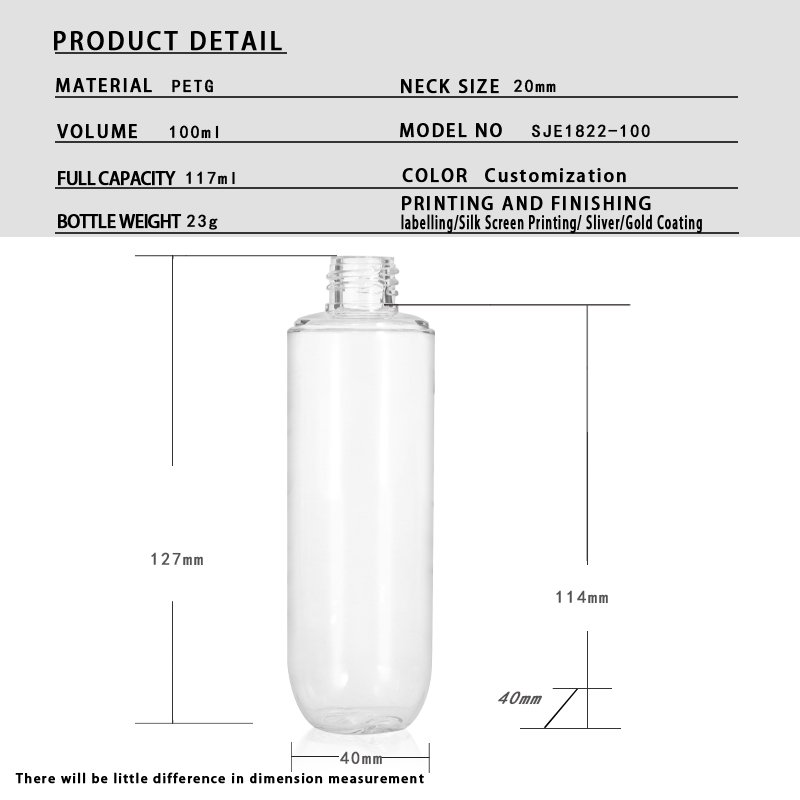

SJE1822-100 is 127 mm tall on a 40 x 40 mm base, so the height is 3.17 times the widest base dimension and the footprint is 16.0 cm².
| Total height | 127 mm |
|---|---|
| Base (W x D) | 40 x 40 mm |
| Footprint | 16.0 cm² |
| Height to widest base | 3.17 : 1 |
| Average content per mm | 0.79 ml |
| Empty weight per 100 mm | 18.11 g |
| Empty weight per litre held | 230 g |
SJE0156-100 is the closest thing we mould to SJE1822-100 at 100 ml: the same height to within 1 mm; 7 g lighter; a 24 mm neck where this one is 20 mm. Moving between the two needs no new tooling.
| SKU | SJE0156-100 |
|---|---|
| Capacity | 100 ml (3.4 fl oz) |
| Height | 127 mm |
| Base | 40 × 40 mm |
| Neck | 24 mm |
| Weight | 16 g |
Stated capacity on SJE1822-100 is 100 ml, inside a body 127 mm tall. Holding the filler at a 90% line puts 90 ml in every unit, so a 500 L batch fills 5,555 of them.
| Batch of product | 100 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 5,555 | 127.8 kg |
| 1,000 L | 11,111 | 255.6 kg |
| 5,000 L | 55,555 | 1,277.8 kg |
5,000 units of SJE1822-100 is 500 L of finished product, and 100,000 units is 10,000 L, which takes 2,300 kg of resin at 23 g a bottle. MOQ is per colour rather than per SKU. 127 mm and 100 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PETG, 100 ml ≈ 3.4 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 40 mm diameter across the base, 127 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 3.17 : 1 (127 mm tall, 40 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 100 ml stated capacity inside a 203 ml rectangular outline — 49 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 23 g body weight = 23.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 109 mm — from the base to the 114 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 126 mm (π × 40 mm) — a wrap-around label up to 116 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 116 × 109 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 100 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PETG formats to this 100 ml model (200 ml, 250 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1684-250 | 250 ml | 27 g | Ø24 mm | 132 mm | +150 ml larger |
| SJE1823-200 | 200 ml | 33 g | Ø20 mm | 146 mm | +100 ml larger · same neck |
| SJE1822-100 | 100 ml | 23 g | Ø20 mm | 127 mm | This model |
