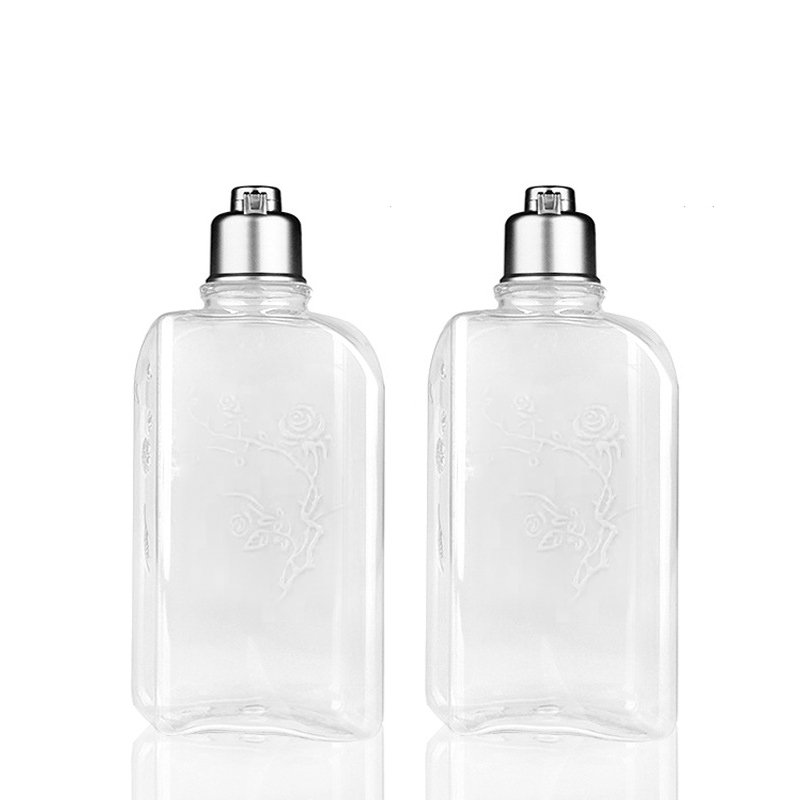

PETG Cosmetic Bottle 300ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJE1741-300. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 300 ml (10.1 fl oz) |
| Overflow Capacity (brimful) | 324 ml (11.0 fl oz) |
| Bottle Weight | 47 g |
| Neck Finish | 24 mm |
| Total Height | 151 mm |
| Shoulder Height | 135 mm |
| Base (W × D) | 67 × 40 mm |
| Material & Compliance | |
| Material | PETG |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this PETG bottle: premium skincare, fragrance, treatment lines and cosmetic products where glass-like clarity is part of the shelf appeal. PETG also suits formulas with higher alcohol or essential-oil content.
SJE1741-300 is a 300 ml PETG bottle in the mid-format skincare range. It suits premium skincare, high-clarity serums, boutique cosmetics and display jars, and is commonly specified for face creams, lotions, cleansers and mid-size skincare. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, silk-screen and hot-stamp with no surface pretreatment are available on this PETG body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

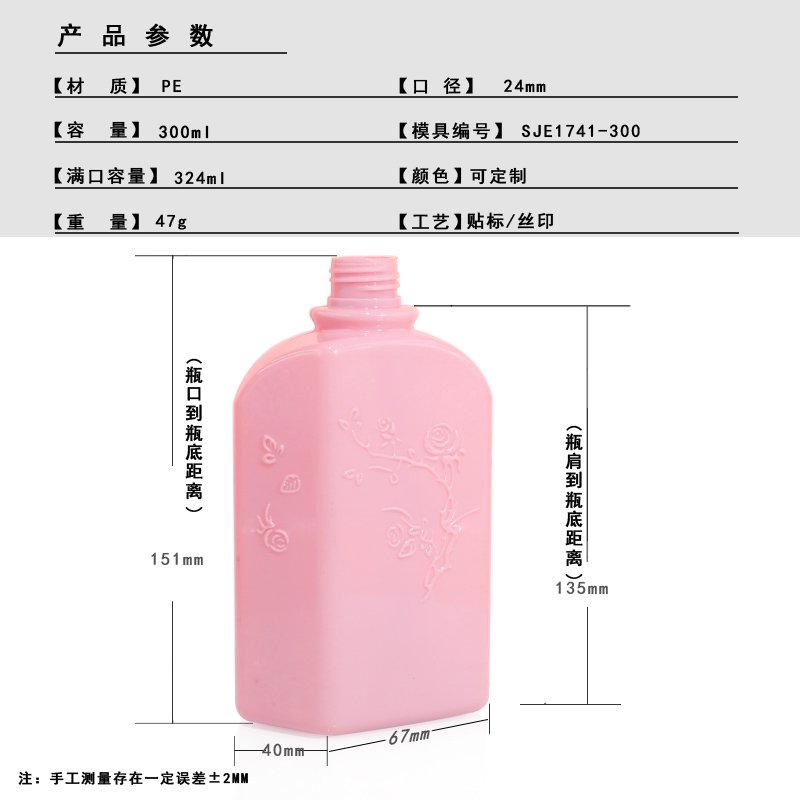

SJE1741-300 is 151 mm tall on a 67 x 40 mm base, so the height is 2.25 times the widest base dimension and the footprint is 26.8 cm².
| Total height | 151 mm |
|---|---|
| Base (W x D) | 67 x 40 mm |
| Footprint | 26.8 cm² |
| Height to widest base | 2.25 : 1 |
| Average content per mm | 1.99 ml |
| Empty weight per 100 mm | 31.13 g |
| Empty weight per litre held | 156.7 g |
| Headspace above nominal | 24 ml (7.4%) |
SJT0033-300 is the closest thing we mould to SJE1741-300 at 300 ml: 2 mm taller; a 67 x 47 mm base against 67 x 40 mm here; 17 g lighter. Moving between the two needs no new tooling.
| SKU | SJT0033-300 |
|---|---|
| Capacity | 300 ml (10.1 fl oz) |
| Height | 153 mm |
| Base | 67 × 47 mm |
| Neck | 24/410 |
| Weight | 30 g |
Stated capacity on SJE1741-300 is 300 ml and the brimful figure is 324 ml, so 24 ml of headspace sits under the rim, inside a body 151 mm tall. Holding the filler at a 90% line puts 270 ml in every unit, so a 500 L batch fills 1,851 of them.
| Batch of product | 300 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 1,851 | 87.0 kg |
| 1,000 L | 3,703 | 174 kg |
| 5,000 L | 18,518 | 870.3 kg |
5,000 units of SJE1741-300 is 1,500 L of finished product, and 100,000 units is 30,000 L, which takes 4,700 kg of resin at 47 g a bottle. MOQ is per colour rather than per SKU. 151 mm and 300 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PETG, 300 ml ≈ 10.1 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 67 × 40 mm base (1.68 : 1 width-to-depth). Two parallel 67 mm faces carry front and back artwork, while the narrow 40 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.25 : 1 (151 mm tall, 67 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 300 ml stated capacity inside a 405 ml rectangular outline — 74 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 47 g body weight = 15.7 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 130 mm — from the base to the 135 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 67 mm flat face → artwork up to 59 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 59 × 130 mm (W × H) flat label on each face, or a wrap label over the 40 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 300 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PETG formats to this 300 ml model (290 ml, 250 ml, 400 ml, 500 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1687-500 | 500 ml | 60 g | Ø28 mm | 174 mm | +200 ml larger |
| SJE1793-400 | 400 ml | 47 g | Ø28 mm | 163 mm | +100 ml larger |
| SJE1741-300 | 300 ml | 47 g | Ø24 mm | 151 mm | This model |
| SJE1688-290 | 290 ml | 50 g | Ø24 mm | 145 mm | 10 ml smaller · same neck |
| SJE1684-250 | 250 ml | 27 g | Ø24 mm | 132 mm | 50 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
