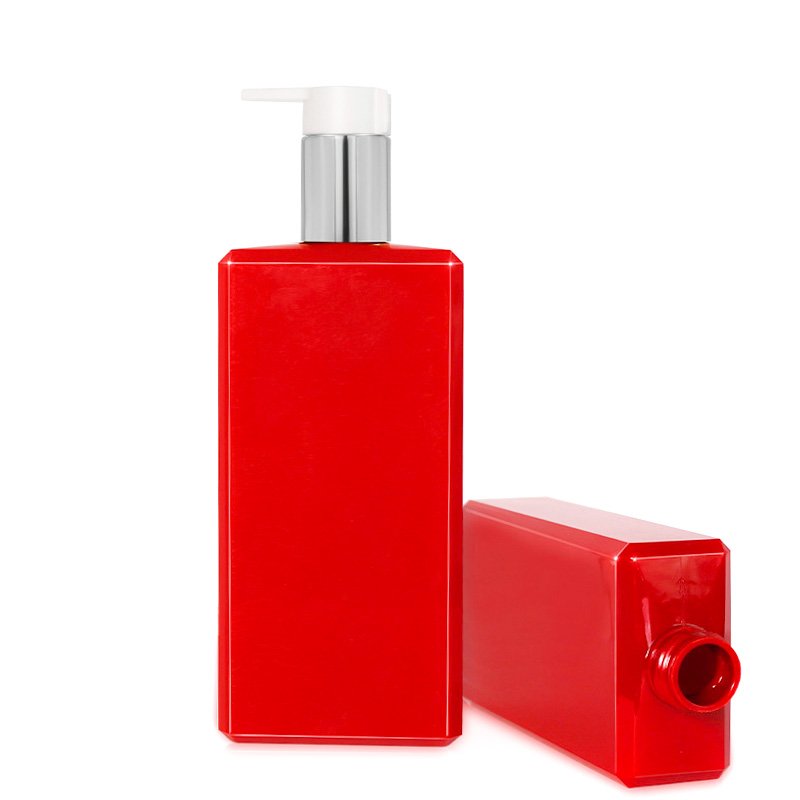

PETG Cosmetic Bottle 290ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJE1688-290. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 290 ml (9.8 fl oz) |
| Overflow Capacity (brimful) | 324 ml (11.0 fl oz) |
| Bottle Weight | 50 g |
| Neck Finish | 24/410 |
| Total Height | 145 mm |
| Base (W × D) | 70 × 36 mm |
| Material & Compliance | |
| Material | PETG |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 378 pcs / carton |
| Carton Dimensions (L×W×H) | 66 × 50 × 52 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this PETG bottle: premium skincare, fragrance, treatment lines and cosmetic products where glass-like clarity is part of the shelf appeal. PETG also suits formulas with higher alcohol or essential-oil content.
SJE1688-290 is a 290 ml PETG bottle in the mid-format skincare range. It suits premium skincare, high-clarity serums, boutique cosmetics and display jars, and is commonly specified for face creams, lotions, cleansers and mid-size skincare. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, silk-screen and hot-stamp with no surface pretreatment are available on this PETG body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

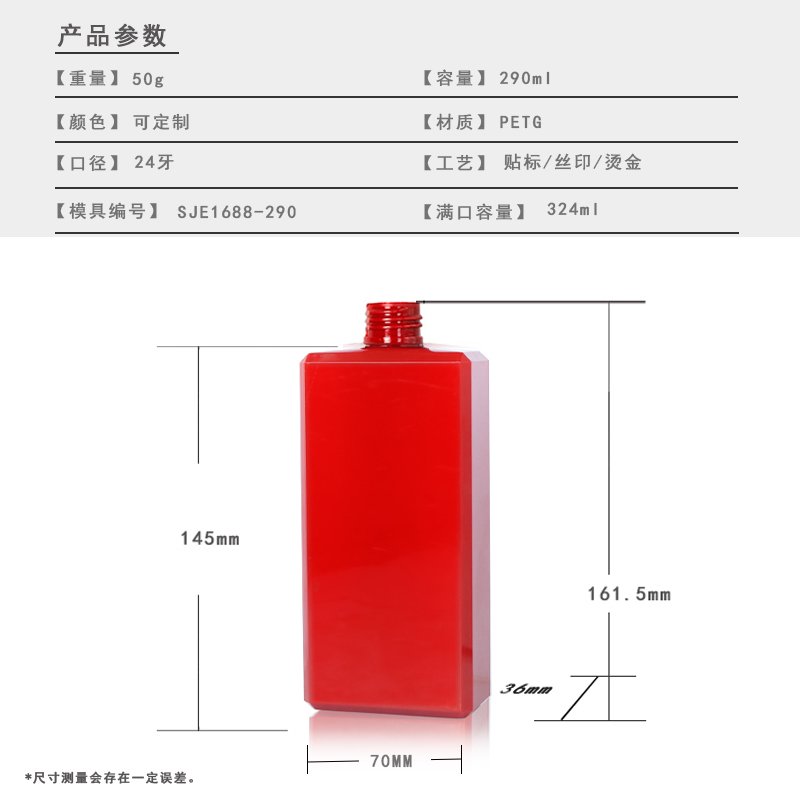

SJE1688-290 is 145 mm tall on a 70 x 36 mm base, so the height is 2.07 times the widest base dimension and the footprint is 25.2 cm².
| Total height | 145 mm |
|---|---|
| Base (W x D) | 70 x 36 mm |
| Footprint | 25.2 cm² |
| Height to widest base | 2.07 : 1 |
| Average content per mm | 2.00 ml |
| Empty weight per 100 mm | 34.48 g |
| Empty weight per litre held | 172.4 g |
| Headspace above nominal | 34 ml (10.5%) |
Stated capacity on SJE1688-290 is 290 ml and the brimful figure is 324 ml, so 34 ml of headspace sits under the rim, inside a body 145 mm tall. Holding the filler at a 90% line puts 261 ml in every unit, so a 500 L batch fills 1,915 of them.
| Batch of product | 290 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 1,915 | 95.8 kg |
| 1,000 L | 3,831 | 191.6 kg |
| 5,000 L | 19,157 | 957.9 kg |
5,000 units of SJE1688-290 is 1,450 L of finished product, and 100,000 units is 29,000 L, which takes 5,000 kg of resin at 50 g a bottle. MOQ is per colour rather than per SKU. 145 mm and 290 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PETG, 290 ml ≈ 9.8 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 70 × 36 mm base (1.94 : 1 width-to-depth). Two parallel 70 mm faces carry front and back artwork, while the narrow 36 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.07 : 1 (145 mm tall, 70 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 290 ml stated capacity inside a 365 ml rectangular outline — 79 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 50 g body weight = 17.2 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Front panel width | 70 mm flat face → artwork up to 62 mm wide with a 4 mm safety margin each side. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 290 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PETG formats to this 290 ml model (250 ml, 200 ml, 300 ml, 400 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1793-400 | 400 ml | 47 g | Ø28 mm | 163 mm | +110 ml larger |
| SJE1741-300 | 300 ml | 47 g | Ø24 mm | 151 mm | +10 ml larger · same neck |
| SJE1688-290 | 290 ml | 50 g | Ø24 mm | 145 mm | This model |
| SJE1684-250 | 250 ml | 27 g | Ø24 mm | 132 mm | 40 ml smaller · same neck |

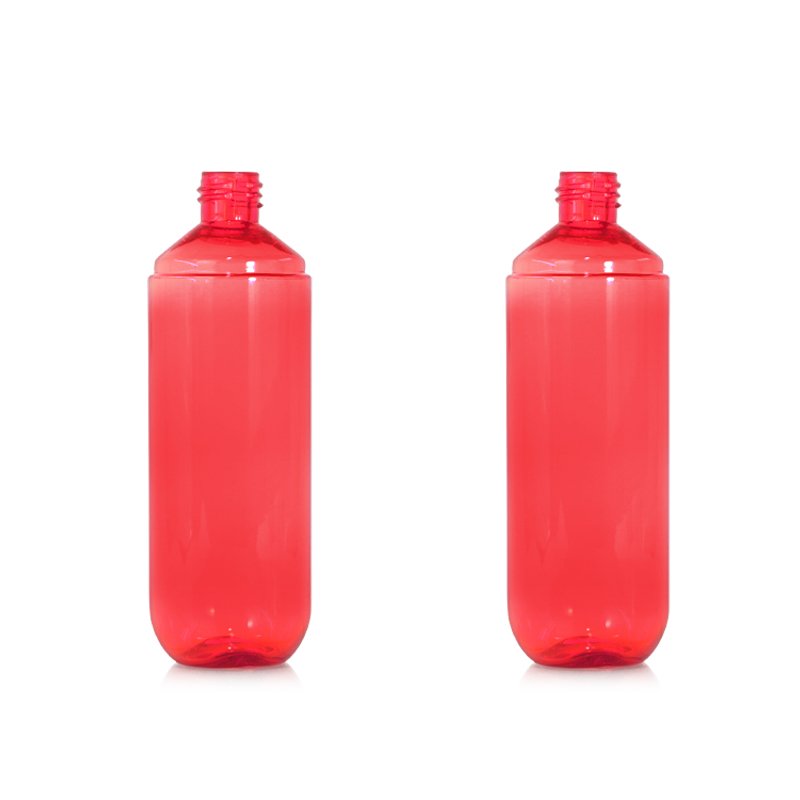

| SJE1823-200 | 200 ml | 33 g | Ø20 mm | 146 mm | 90 ml smaller |
