PETG Cosmetic Bottle 200ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJE1823-200. Nominal factory values — custom colors, printing and finishing available on all parameters below.

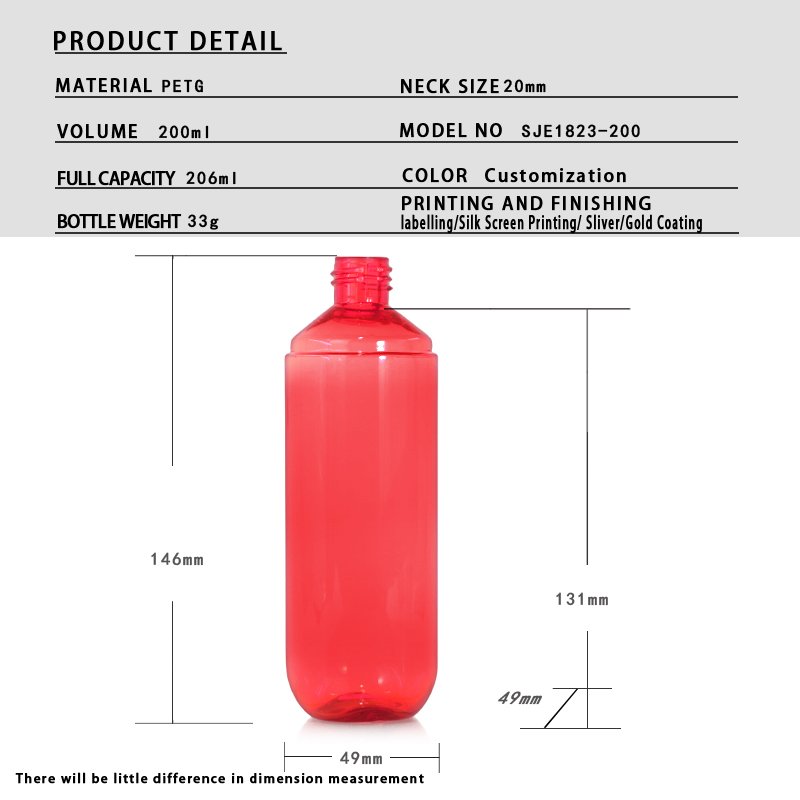

| Dimensions & Capacity | |
| Nominal Capacity | 200 ml (6.8 fl oz) |
| Bottle Weight | 33 g |
| Neck Finish | 20 mm |
| Total Height | 146 mm |
| Shoulder Height | 131 mm |
| Base (W × D) | 49 × 49 mm |
| Material & Compliance | |
| Material | PETG |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 200 pcs / carton |
| Carton Dimensions (L×W×H) | 51 × 49 × 31 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this PETG bottle: premium skincare, fragrance, treatment lines and cosmetic products where glass-like clarity is part of the shelf appeal. PETG also suits formulas with higher alcohol or essential-oil content.
SJE1823-200 is a 200 ml PETG bottle in the daily face-care size range. It suits premium skincare, high-clarity serums, boutique cosmetics and display jars, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, silk-screen and hot-stamp with no surface pretreatment are available on this PETG body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
SJE1823-200 is 146 mm tall on a 49 x 49 mm base, so the height is 2.98 times the widest base dimension and the footprint is 24.0 cm².
| Total height | 146 mm |
|---|---|
| Base (W x D) | 49 x 49 mm |
| Footprint | 24.0 cm² |
| Height to widest base | 2.98 : 1 |
| Average content per mm | 1.37 ml |
| Empty weight per 100 mm | 22.60 g |
| Empty weight per litre held | 165 g |
SJT0560-200 is the closest thing we mould to SJE1823-200 at 200 ml: the same height to within 1 mm; a 50 x 50 mm base against 49 x 49 mm here; 8 g lighter; a 24 mm neck where this one is 20 mm. Moving between the two needs no new tooling.
| SKU | SJT0560-200 |
|---|---|
| Capacity | 200 ml (6.8 fl oz) |
| Height | 146 mm |
| Base | 50 × 50 mm |
| Neck | 24 mm |
| Weight | 25 g |
Stated capacity on SJE1823-200 is 200 ml, inside a body 146 mm tall. Holding the filler at a 90% line puts 180 ml in every unit, so a 500 L batch fills 2,777 of them.
| Batch of product | 200 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 2,777 | 91.6 kg |
| 1,000 L | 5,555 | 183.3 kg |
| 5,000 L | 27,777 | 916.6 kg |
5,000 units of SJE1823-200 is 1,000 L of finished product, and 100,000 units is 20,000 L, which takes 3,300 kg of resin at 33 g a bottle. MOQ is per colour rather than per SKU. 146 mm and 200 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PETG, 200 ml ≈ 6.8 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 49 mm diameter across the base, 146 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.98 : 1 (146 mm tall, 49 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 200 ml stated capacity inside a 351 ml rectangular outline — 57 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 33 g body weight = 16.5 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 126 mm — from the base to the 131 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 154 mm (π × 49 mm) — a wrap-around label up to 142 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 142 × 126 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 200 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PETG formats to this 200 ml model (100 ml, 100 ml, 250 ml, 290 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1688-290 | 290 ml | 50 g | Ø24 mm | 145 mm | +90 ml larger |
| SJE1684-250 | 250 ml | 27 g | Ø24 mm | 132 mm | +50 ml larger |
| SJE1823-200 | 200 ml | 33 g | Ø20 mm | 146 mm | This model |
| SJE1822-100 | 100 ml | 23 g | Ø20 mm | 127 mm | 100 ml smaller · same neck |
| SJE1756-100 | 100 ml | 22 g | Ø38 mm | 85 mm | 100 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
