PE Cosmetic Bottle 200ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1767-200. Nominal factory values — custom colors, printing and finishing available on all parameters below.

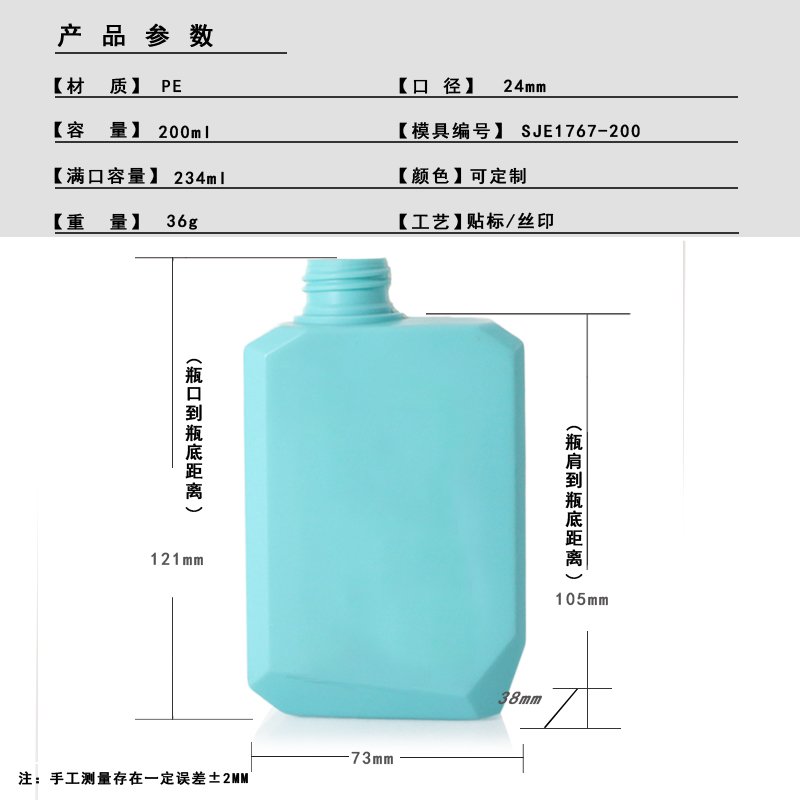

| Dimensions & Capacity | |
| Nominal Capacity | 200 ml (6.8 fl oz) |
| Overflow Capacity (brimful) | 234 ml (7.9 fl oz) |
| Bottle Weight | 36 g |
| Neck Finish | 24 mm |
| Total Height | 121 mm |
| Shoulder Height | 105 mm |
| Base (W × D) | 73 × 38 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.

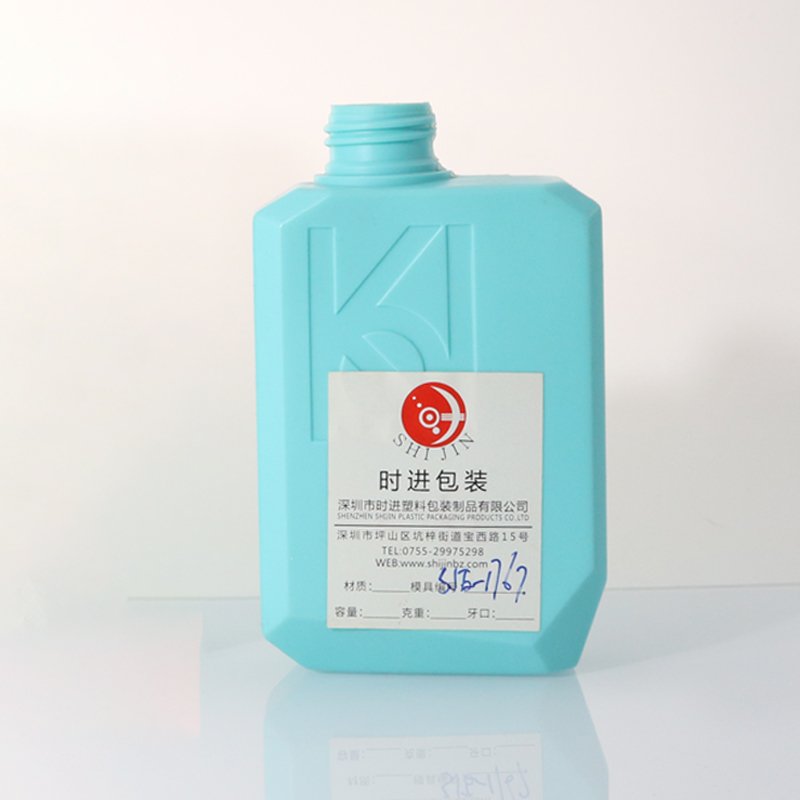

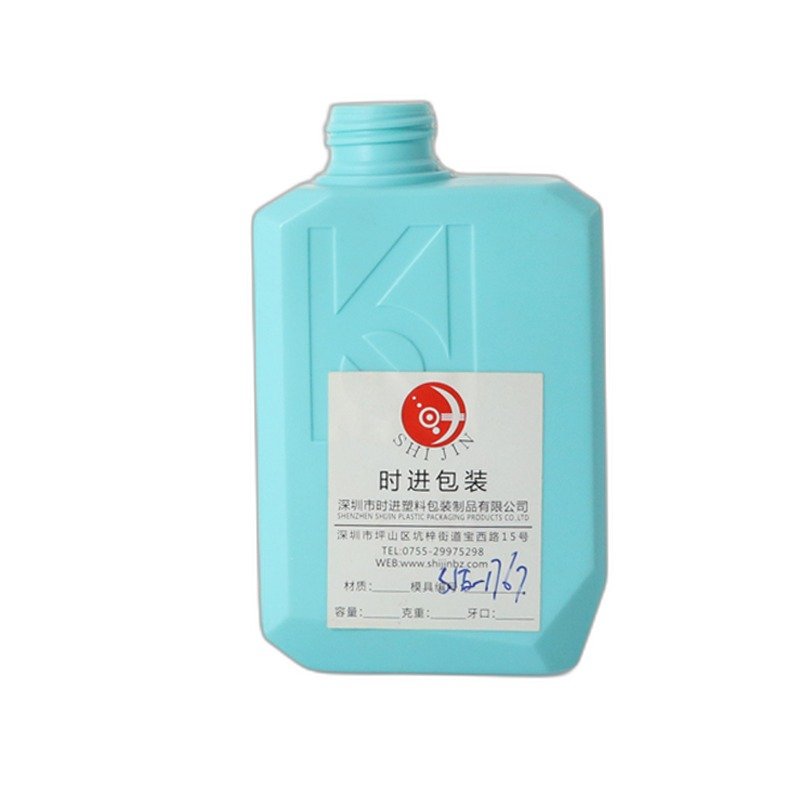

SJE1767-200 is a 200 ml PE / HDPE bottle in the daily face-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
SJE1767-200 is 121 mm tall on a 73 x 38 mm base, so the height is 1.66 times the widest base dimension and the footprint is 27.7 cm².
| Total height | 121 mm |
|---|---|
| Base (W x D) | 73 x 38 mm |
| Footprint | 27.7 cm² |
| Height to widest base | 1.66 : 1 |
| Average content per mm | 1.65 ml |
| Empty weight per 100 mm | 29.75 g |
| Empty weight per litre held | 180 g |
| Headspace above nominal | 34 ml (14.5%) |
SJE1755-200 is the closest thing we mould to SJE1767-200 at 200 ml: 1 mm shorter; an 81 x 35 mm base against 73 x 38 mm here; 13 g lighter; a 28 mm neck where this one is 24 mm. Moving between the two needs no new tooling.
| SKU | SJE1755-200 |
|---|---|
| Capacity | 200 ml (6.8 fl oz) |
| Height | 120 mm |
| Base | 81 × 35 mm |
| Neck | 28 mm |
| Weight | 23 g |
Stated capacity on SJE1767-200 is 200 ml and the brimful figure is 234 ml, so 34 ml of headspace sits under the rim, inside a body 121 mm tall. Holding the filler at a 90% line puts 180 ml in every unit, so a 500 L batch fills 2,777 of them.
| Batch of product | 200 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 2,777 | 100.0 kg |
| 1,000 L | 5,555 | 200 kg |
| 5,000 L | 27,777 | 1,000 kg |
5,000 units of SJE1767-200 is 1,000 L of finished product, and 100,000 units is 20,000 L, which takes 3,600 kg of resin at 36 g a bottle. MOQ is per colour rather than per SKU. 121 mm and 200 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 200 ml ≈ 6.8 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 73 × 38 mm base (1.92 : 1 width-to-depth). Two parallel 73 mm faces carry front and back artwork, while the narrow 38 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.66 : 1 (121 mm tall, 73 mm wide). Low-profile, wide-footed format: the most stable of the three under high-speed filling and the easiest to stack. |
| Fill-to-outline ratio | 200 ml stated capacity inside a 336 ml rectangular outline — 60 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 36 g body weight = 18.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 100 mm — from the base to the 105 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 73 mm flat face → artwork up to 65 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 65 × 100 mm (W × H) flat label on each face, or a wrap label over the 38 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 200 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 200 ml model (190 ml, 180 ml, 220 ml, 230 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0224-230 | 230 ml | 17 g | Ø35 mm | 147 mm | +30 ml larger |
| SJE1800-220 | 220 ml | 32 g | Ø28 mm | 145 mm | +20 ml larger |
| SJE1767-200 | 200 ml | 36 g | Ø24 mm | 121 mm | This model |
| SJE1867-190 | 190 ml | 20 g | Ø24 mm | 159 mm | 10 ml smaller · same neck |
| SJE1629-180 | 180 ml | 22 g | Ø28 mm | 131 mm | 20 ml smaller |
