PE Cosmetic Bottle 220ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1800-220. Nominal factory values — custom colors, printing and finishing available on all parameters below.

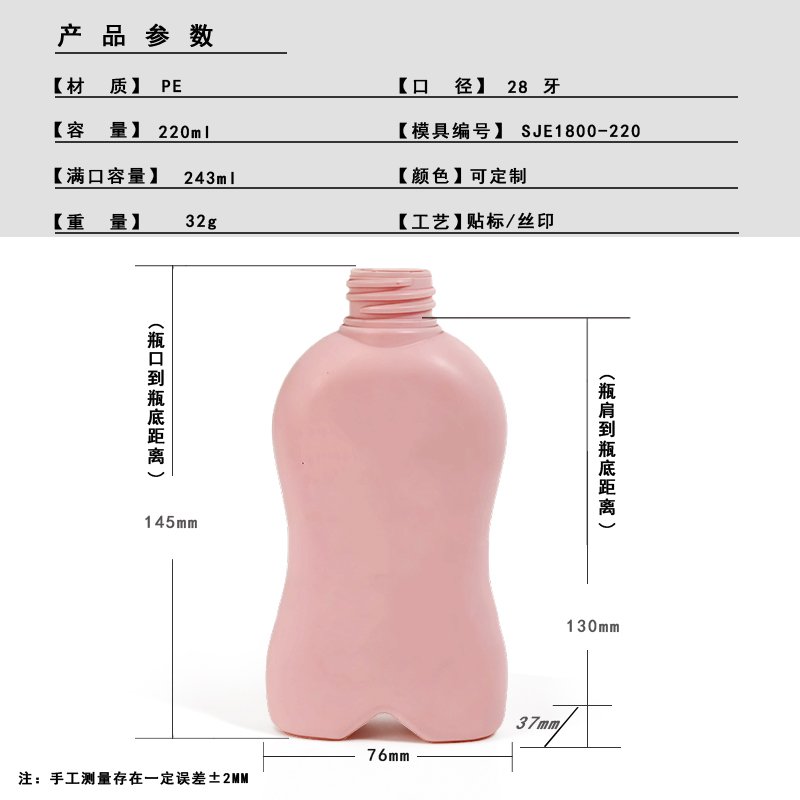

| Dimensions & Capacity | |
| Nominal Capacity | 220 ml (7.4 fl oz) |
| Overflow Capacity (brimful) | 243 ml (8.2 fl oz) |
| Bottle Weight | 32 g |
| Neck Finish | 28/410 |
| Total Height | 145 mm |
| Shoulder Height | 130 mm |
| Base (W × D) | 76 × 37 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 400 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 45 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size HDPE bottle: shampoo, conditioner, body wash, hand soap and general personal-care packaging. HDPE resists everyday chemicals and squeezes cleanly to the last drop.
SJE1800-220 is a 220 ml PE / HDPE bottle in the mid-format skincare range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for face creams, lotions, cleansers and mid-size skincare. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
SJE1800-220 is 145 mm tall on a 76 x 37 mm base, so the height is 1.91 times the widest base dimension and the footprint is 28.1 cm².
| Total height | 145 mm |
|---|---|
| Base (W x D) | 76 x 37 mm |
| Footprint | 28.1 cm² |
| Height to widest base | 1.91 : 1 |
| Average content per mm | 1.52 ml |
| Empty weight per 100 mm | 22.07 g |
| Empty weight per litre held | 145.5 g |
| Headspace above nominal | 23 ml (9.5%) |
SJT0234-220 is the closest thing we mould to SJE1800-220 at 220 ml: 12 mm shorter; a 72 x 51 mm base against 76 x 37 mm here; 13 g lighter; a 24 mm neck where this one is 28 mm. Moving between the two needs no new tooling.
| SKU | SJT0234-220 |
|---|---|
| Capacity | 220 ml (7.4 fl oz) |
| Height | 133 mm |
| Base | 72 × 51 mm |
| Neck | 24 mm |
| Weight | 19 g |
Stated capacity on SJE1800-220 is 220 ml and the brimful figure is 243 ml, so 23 ml of headspace sits under the rim, inside a body 145 mm tall. Holding the filler at a 90% line puts 198 ml in every unit, so a 500 L batch fills 2,525 of them.
| Batch of product | 220 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 2,525 | 80.8 kg |
| 1,000 L | 5,050 | 161.6 kg |
| 5,000 L | 25,252 | 808.1 kg |
5,000 units of SJE1800-220 is 1,100 L of finished product, and 100,000 units is 22,000 L, which takes 3,200 kg of resin at 32 g a bottle. MOQ is per colour rather than per SKU. 145 mm and 220 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 220 ml ≈ 7.4 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 76 × 37 mm base (2.05 : 1 width-to-depth). Two parallel 76 mm faces carry front and back artwork, while the narrow 37 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.91 : 1 (145 mm tall, 76 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 220 ml stated capacity inside a 408 ml rectangular outline — 54 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 32 g body weight = 14.5 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 125 mm — from the base to the 130 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 76 mm flat face → artwork up to 68 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 68 × 125 mm (W × H) flat label on each face, or a wrap label over the 37 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 220 ml the Ø28 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 220 ml model (200 ml, 200 ml, 230 ml, 230 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0224-230 | 230 ml | 17 g | Ø35 mm | 147 mm | +10 ml larger |
| SJE1885-230 | 230 ml | 34 g | Ø24 mm | 124 mm | +10 ml larger |
| SJE1800-220 | 220 ml | 32 g | Ø28 mm | 145 mm | This model |
| SJE1865-200 | 200 ml | 25 g | Ø30 mm | 131 mm | 20 ml smaller |
| SJE1864-200 | 200 ml | 24 g | Ø24 mm | 137 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
