PE Cosmetic Bottle 50ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1859-50. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 50 ml (1.7 fl oz) |
| Bottle Weight | 11 g |
| Neck Finish | 14 mm |
| Total Height | 102 mm |
| Shoulder Height | 87 mm |
| Base (W × D) | 43 × 23 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE1859-50 is a 50 ml PE / HDPE bottle in the travel & sample size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel kits, hotel amenities, free samples and single-use sachets. The 14 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats without mol so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

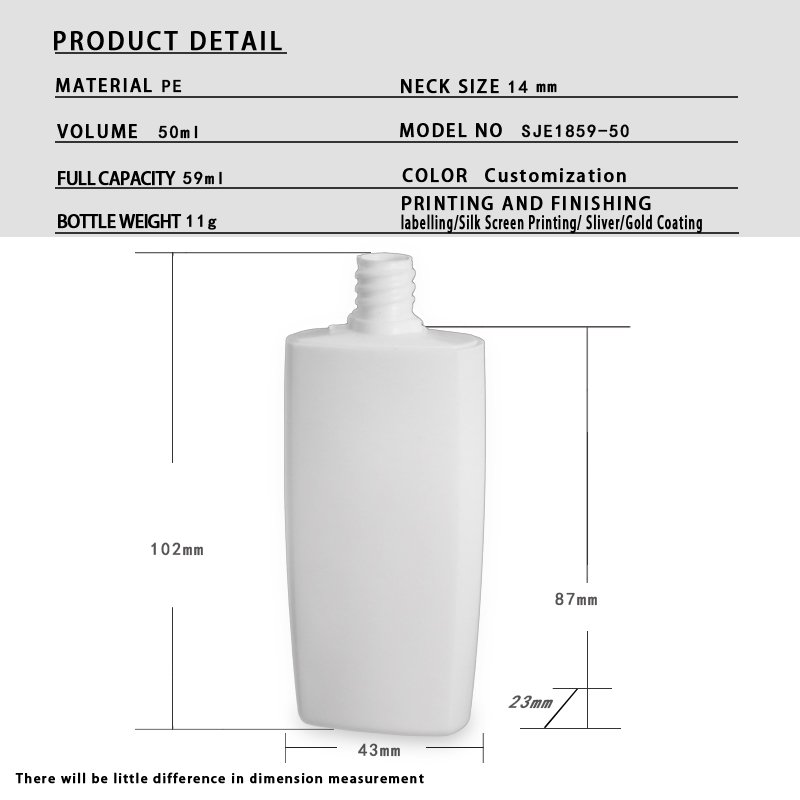

SJE1859-50 is 102 mm tall on a 43 x 23 mm base, so the height is 2.37 times the widest base dimension and the footprint is 9.9 cm².
| Total height | 102 mm |
|---|---|
| Base (W x D) | 43 x 23 mm |
| Footprint | 9.9 cm² |
| Height to widest base | 2.37 : 1 |
| Average content per mm | 0.49 ml |
| Empty weight per 100 mm | 10.78 g |
| Empty weight per litre held | 220 g |
SJE1862-50 is the closest thing we mould to SJE1859-50 at 50 ml: 4 mm shorter; a 43 x 25 mm base against 43 x 23 mm here; the same 11 g empty; a 16 mm neck where this one is 14 mm. Moving between the two needs no new tooling.
| SKU | SJE1862-50 |
|---|---|
| Capacity | 50 ml (1.7 fl oz) |
| Height | 98 mm |
| Base | 43 × 25 mm |
| Neck | 16 mm |
| Weight | 11 g |
Stated capacity on SJE1859-50 is 50 ml, inside a body 102 mm tall. Holding the filler at a 90% line puts 45 ml in every unit, so a 500 L batch fills 11,111 of them.
| Batch of product | 50 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 11,111 | 122.2 kg |
| 1,000 L | 22,222 | 244.4 kg |
| 5,000 L | 111,111 | 1,222.2 kg |
5,000 units of SJE1859-50 is 250 L of finished product, and 100,000 units is 5,000 L, which takes 1,100 kg of resin at 11 g a bottle. MOQ is per colour rather than per SKU. 102 mm and 50 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 50 ml ≈ 1.7 fl oz, Ø14 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 43 × 23 mm base (1.87 : 1 width-to-depth). Two parallel 43 mm faces carry front and back artwork, while the narrow 23 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.37 : 1 (102 mm tall, 43 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 50 ml stated capacity inside a 101 ml rectangular outline — 50 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 11 g body weight = 22.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 82 mm — from the base to the 87 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 43 mm flat face → artwork up to 35 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 35 × 82 mm (W × H) flat label on each face, or a wrap label over the 23 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø14 mm screw neck — quote the closure together with the bottle so the T-dimension is confirmed on the drawing. |
| Dosing note | At 50 ml the Ø14 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 50 ml model (45 ml, 30 ml, 60 ml, 60 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0223-60 | 60 ml | 10 g | Ø20 mm | 88 mm | +10 ml larger |
| SJE1760-60 | 60 ml | 19 g | Ø20 mm | 70 mm | +10 ml larger |
| SJE1859-50 | 50 ml | 11 g | Ø14 mm | 102 mm | This model |
| SJE1895-45 | 45 ml | 9 g | Ø20 mm | 71 mm | 5 ml smaller |
| SJE1837-30 | 30 ml | 8 g | Ø20 mm | 89 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
