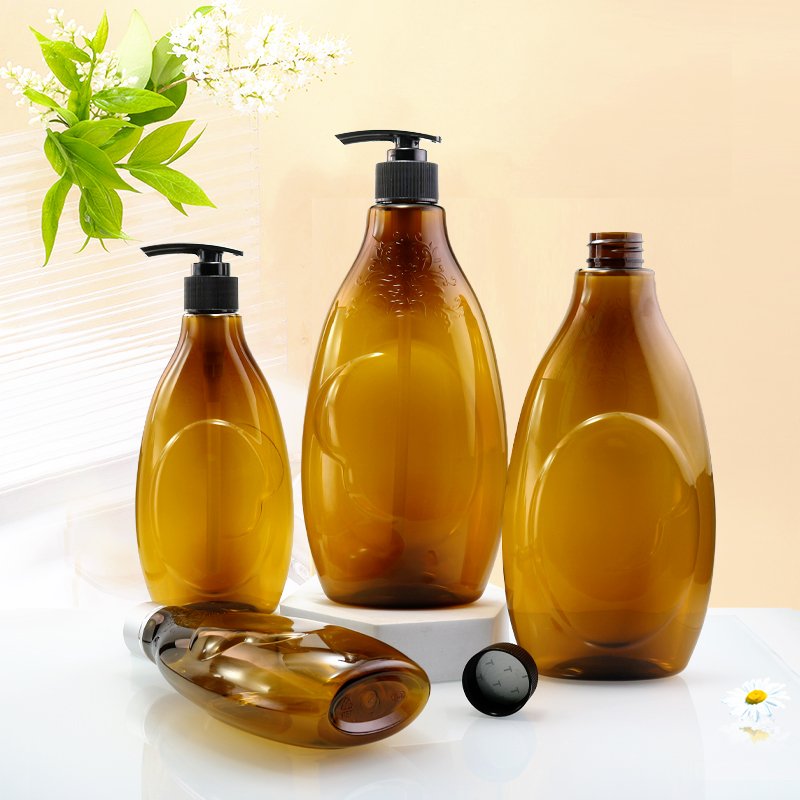

PET Cosmetic Bottle 269ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0277-269. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 269 ml (9.1 fl oz) |
| Overflow Capacity (brimful) | 297 ml (10.0 fl oz) |
| Bottle Weight | 30 g |
| Neck Finish | 24/410 |
| Total Height | 170 mm |
| Shoulder Height | 152 mm |
| Base (W × D) | 80 × 45 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 378 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 52 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0277-269 is a 269 ml PET bottle in the mid-format skincare range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for face creams, lotions, cleansers and mid-size skincare. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

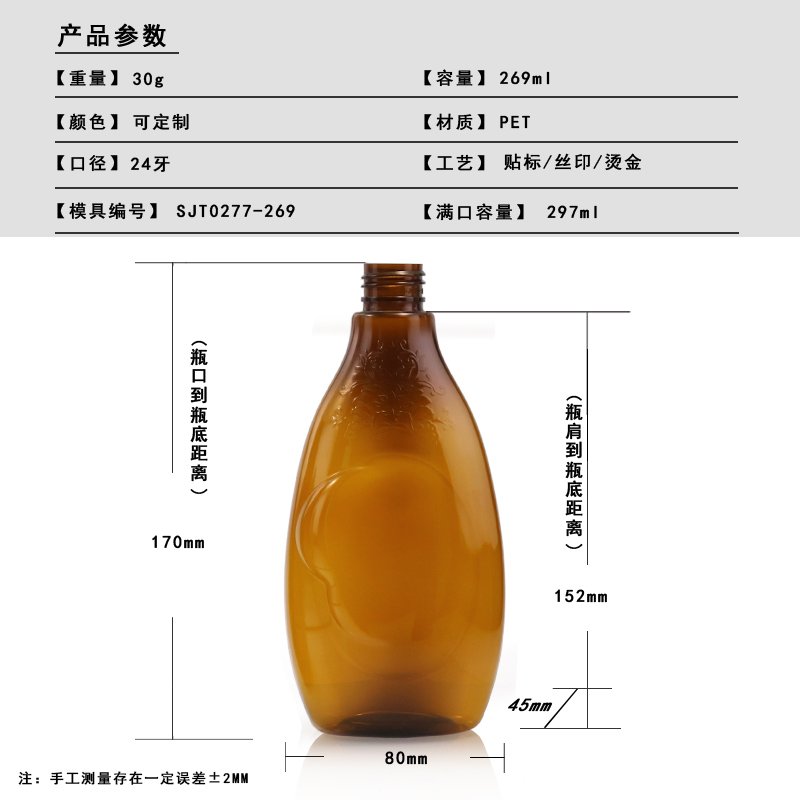

SJT0277-269 is 170 mm tall on an 80 x 45 mm base, so the height is 2.12 times the widest base dimension and the footprint is 36.0 cm².
| Total height | 170 mm |
|---|---|
| Base (W x D) | 80 x 45 mm |
| Footprint | 36.0 cm² |
| Height to widest base | 2.12 : 1 |
| Average content per mm | 1.58 ml |
| Empty weight per 100 mm | 17.65 g |
| Empty weight per litre held | 111.5 g |
| Headspace above nominal | 28 ml (9.4%) |
SJE1626-268 is the closest thing we mould to SJT0277-269 at 269 ml: 13 mm taller; a 71 x 42 mm base against 80 x 45 mm here; 3 g lighter. Moving between the two needs no new tooling.
| SKU | SJE1626-268 |
|---|---|
| Capacity | 268 ml (9.1 fl oz) |
| Height | 183 mm |
| Base | 71 × 42 mm |
| Neck | 24 mm |
| Weight | 27 g |
Stated capacity on SJT0277-269 is 269 ml and the brimful figure is 297 ml, so 28 ml of headspace sits under the rim, inside a body 170 mm tall. Holding the filler at a 90% line puts 242.1 ml in every unit, so a 500 L batch fills 2,065 of them.
| Batch of product | 269 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 2,065 | 62.0 kg |
| 1,000 L | 4,130 | 123.9 kg |
| 5,000 L | 20,652 | 619.6 kg |
5,000 units of SJT0277-269 is 1,345 L of finished product, and 100,000 units is 26,900 L, which takes 3,000 kg of resin at 30 g a bottle. MOQ is per colour rather than per SKU. 170 mm and 269 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 269 ml ≈ 9.1 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 80 × 45 mm base (1.78 : 1 width-to-depth). Two parallel 80 mm faces carry front and back artwork, while the narrow 45 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.12 : 1 (170 mm tall, 80 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 269 ml stated capacity inside a 612 ml rectangular outline — 44 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 30 g body weight = 11.2 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 147 mm — from the base to the 152 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 80 mm flat face → artwork up to 72 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 72 × 147 mm (W × H) flat label on each face, or a wrap label over the 45 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 269 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 269 ml model (260 ml, 260 ml, 280 ml, 280 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0003-280 | 280 ml | 25 g | Ø24 mm | 154 mm | +11 ml larger · same neck |
| SJT0090-280 | 280 ml | 30 g | Ø28 mm | 187 mm | +11 ml larger |
| SJT0277-269 | 269 ml | 30 g | Ø24 mm | 170 mm | This model |
| SJT0500-260 | 260 ml | 40 g | Ø24 mm | 138 mm | 9 ml smaller · same neck |
| SJT0280-260 | 260 ml | 29 g | Ø28 mm | 155 mm | 9 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
