PET Cosmetic Bottle 60ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0292-814. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Detailed dimensional data for this model is available on request — contact us for the full spec sheet.
Typical applications for this large PET bottle: refillable body wash, shampoo, conditioner and household-care volumes. Large formats cut per-unit packaging cost while keeping a clean, premium look.

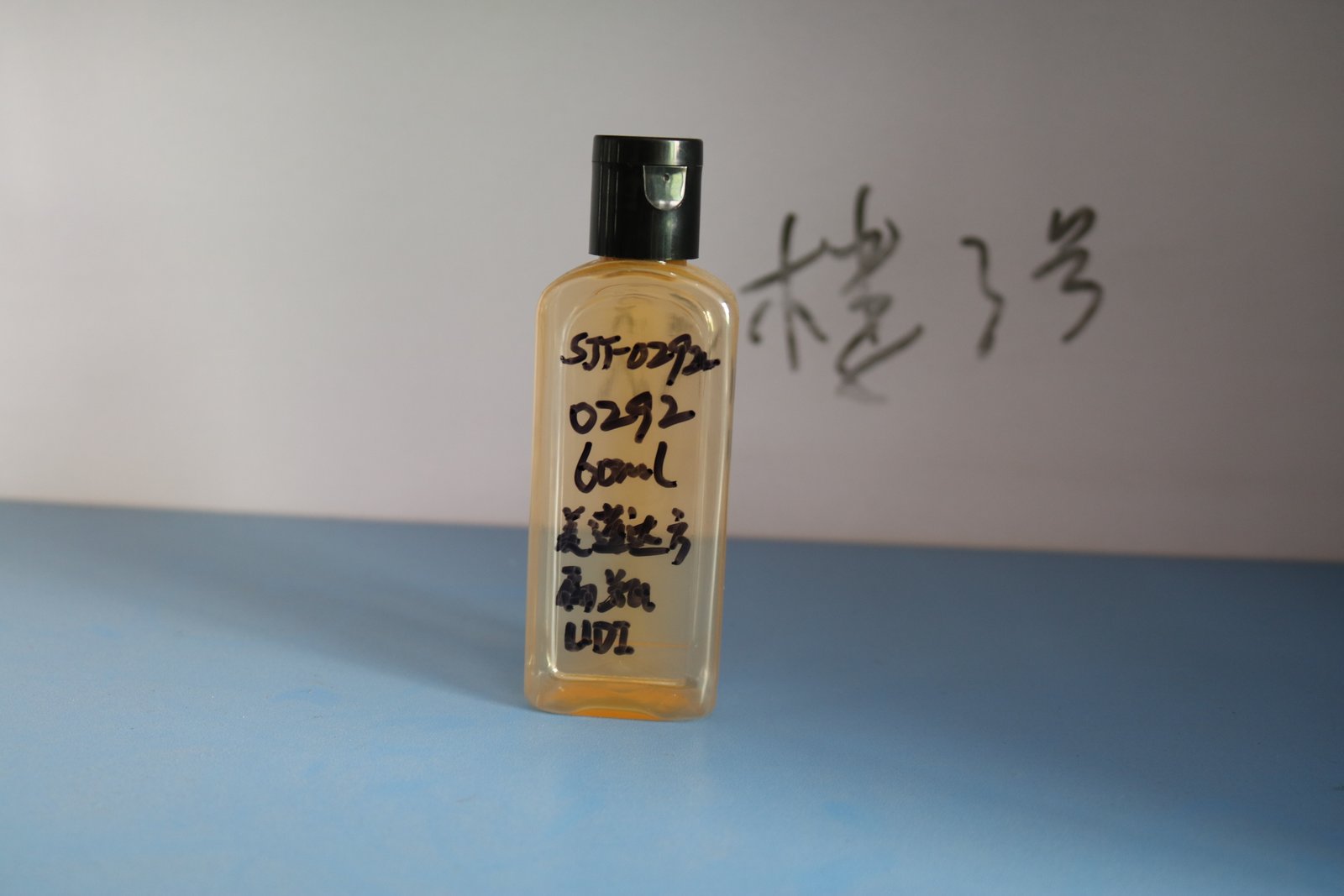

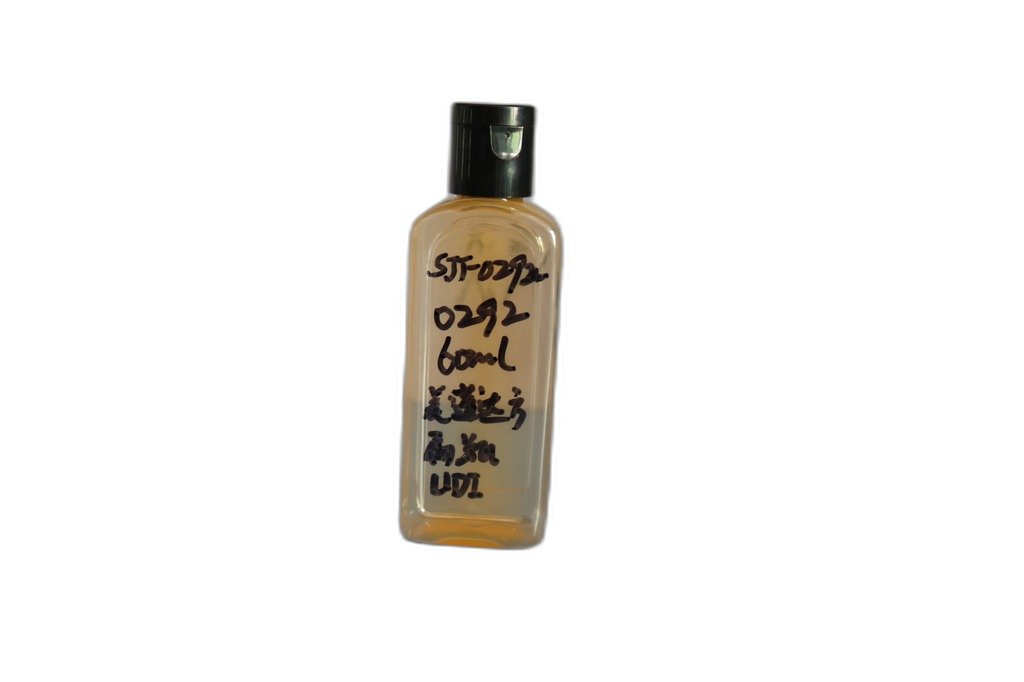

SJT0292-814 is a 60 ml PET bottle in the travel & trial size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. The 18 mm neck is compatible with an 18/415 fine-mist sprayer or small disc-top cap, so it adap so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching an 18/415 fine-mist sprayer or small disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

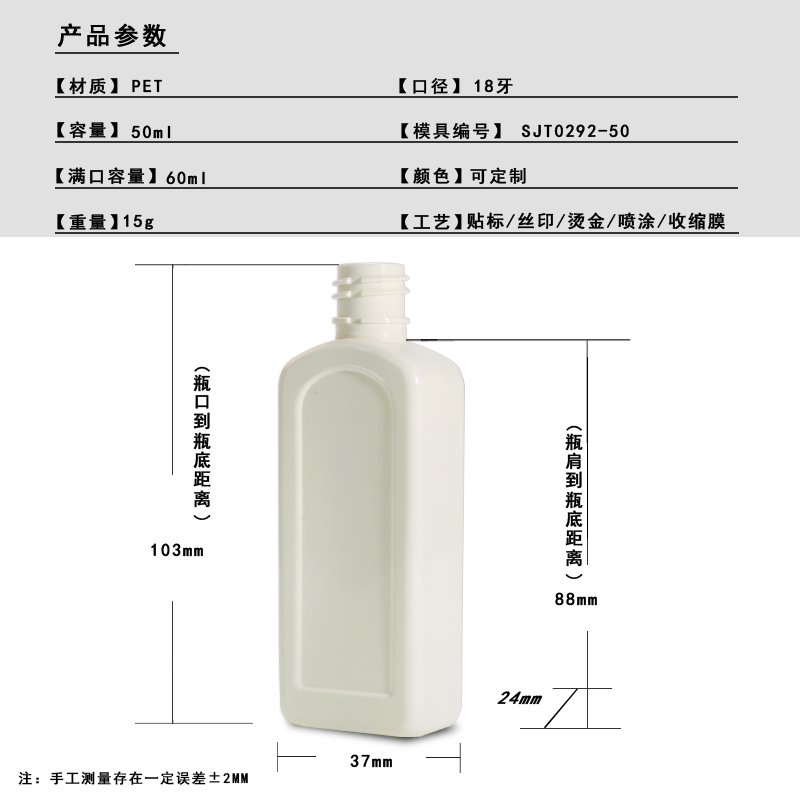

Everything below is calculated from the nominal dimensions in the specification table above (PET, 60 ml ≈ 2.0 fl oz, Ø18 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 37 × 24 mm base (1.54 : 1 width-to-depth). Two parallel 37 mm faces carry front and back artwork, while the narrow 24 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.78 : 1 (103 mm tall, 37 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 60 ml stated capacity inside a 91 ml rectangular outline — 66 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 15 g body weight = 25.0 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 83 mm — from the base to the 88 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 37 mm flat face → artwork up to 29 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 29 × 83 mm (W × H) flat label on each face, or a wrap label over the 24 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø18 mm screw neck — the 18/410 or 18/415 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | dropper, fine-mist sprayer or small disc-top cap. |
| Dosing note | At 60 ml the Ø18 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 60 ml model (50 ml, 50 ml, 65 ml, 70 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0204-70 | 70 ml | 12 g | Ø20 mm | 131 mm | +10 ml larger |
| SJT0228-65 | 65 ml | 16 g | Ø24 mm | 104 mm | +5 ml larger |
| SJT0292-814 | 60 ml | 15 g | Ø18 mm | 103 mm | This model |
| SJT0598-50 | 50 ml | 16 g | Ø24 mm | 80 mm | 10 ml smaller |
| SJT0590-50 | 50 ml | 10 g | Ø20 mm | 98 mm | 10 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
