PET Cosmetic Bottle 580ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0360-580. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 580 ml (19.6 fl oz) |
| Overflow Capacity (brimful) | 603 ml (20.4 fl oz) |
| Bottle Weight | 55 g |
| Neck Finish | 32/410 |
| Total Height | 197 mm |
| Shoulder Height | 182 mm |
| Base (W × D) | 64 × 64 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 174 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 42 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large PET bottle: refillable body wash, shampoo, conditioner and household-care volumes. Large formats cut per-unit packaging cost while keeping a clean, premium look.
SJT0360-580 is a 580 ml PET bottle in the family & refill size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for family-size body care, refill packs and value bundles. The 32 mm neck is compatible with standard screw, pump or flip-top closure, s so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

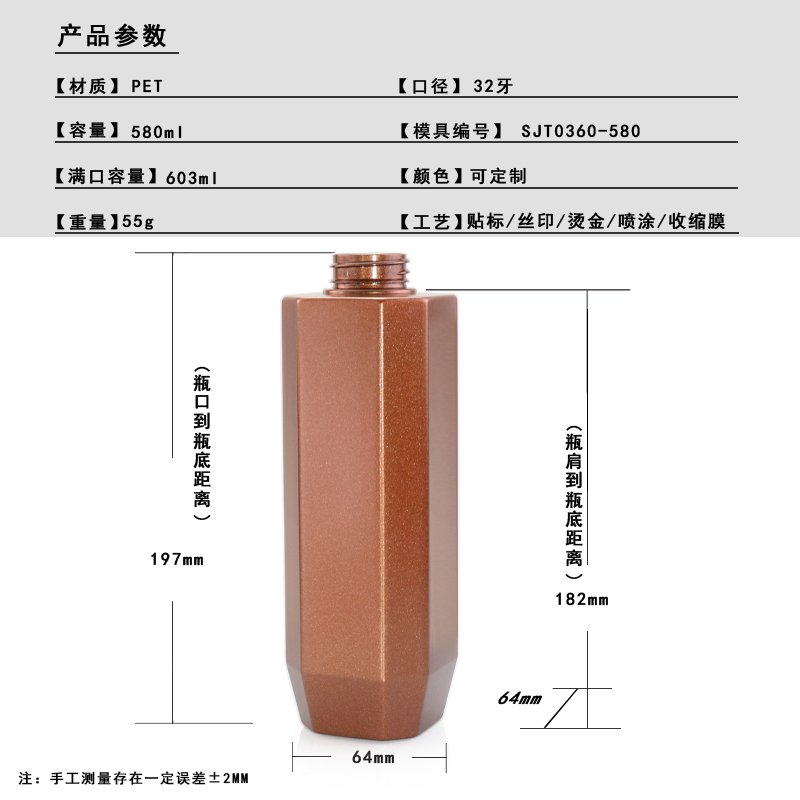

SJT0360-580 is 197 mm tall on a 64 x 64 mm base, so the height is 3.08 times the widest base dimension and the footprint is 41.0 cm².
| Total height | 197 mm |
|---|---|
| Base (W x D) | 64 x 64 mm |
| Footprint | 41.0 cm² |
| Height to widest base | 3.08 : 1 |
| Average content per mm | 2.94 ml |
| Empty weight per 100 mm | 27.92 g |
| Empty weight per litre held | 94.8 g |
| Headspace above nominal | 23 ml (3.8%) |
SJT0264-580 is the closest thing we mould to SJT0360-580 at 580 ml: 2 mm shorter; an 87 x 87 mm base against 64 x 64 mm here; the same 55 g empty. Moving between the two needs no new tooling.
| SKU | SJT0264-580 |
|---|---|
| Capacity | 580 ml (19.6 fl oz) |
| Height | 195 mm |
| Base | 87 × 87 mm |
| Neck | 32/410 |
| Weight | 55 g |
Stated capacity on SJT0360-580 is 580 ml and the brimful figure is 603 ml, so 23 ml of headspace sits under the rim, inside a body 197 mm tall. Holding the filler at a 90% line puts 522 ml in every unit, so a 500 L batch fills 957 of them.
| Batch of product | 580 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 957 | 52.6 kg |
| 1,000 L | 1,915 | 105.3 kg |
| 5,000 L | 9,578 | 526.8 kg |
5,000 units of SJT0360-580 is 2,900 L of finished product, and 100,000 units is 58,000 L, which takes 5,500 kg of resin at 55 g a bottle. MOQ is per colour rather than per SKU. 197 mm and 580 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 580 ml ≈ 19.6 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 64 mm diameter across the base, 197 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 3.08 : 1 (197 mm tall, 64 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 580 ml stated capacity inside a 807 ml rectangular outline — 72 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 55 g body weight = 9.5 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 177 mm — from the base to the 182 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 201 mm (π × 64 mm) — a wrap-around label up to 185 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 185 × 177 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 580 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 580 ml model (569 ml, 550 ml, 600 ml, 600 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0016-600 | 600 ml | 47 g | Ø28 mm | 202 mm | +20 ml larger |
| SJT0240-600 | 600 ml | 60 g | Ø32 mm | 203 mm | +20 ml larger · same neck |
| SJT0360-580 | 580 ml | 55 g | Ø32 mm | 197 mm | This model |
| SJT0281-569 | 569 ml | 55 g | Ø28 mm | 210 mm | 11 ml smaller |
| SJT0545-550 | 550 ml | 47 g | Ø32 mm | 169 mm | 30 ml smaller · same neck |
