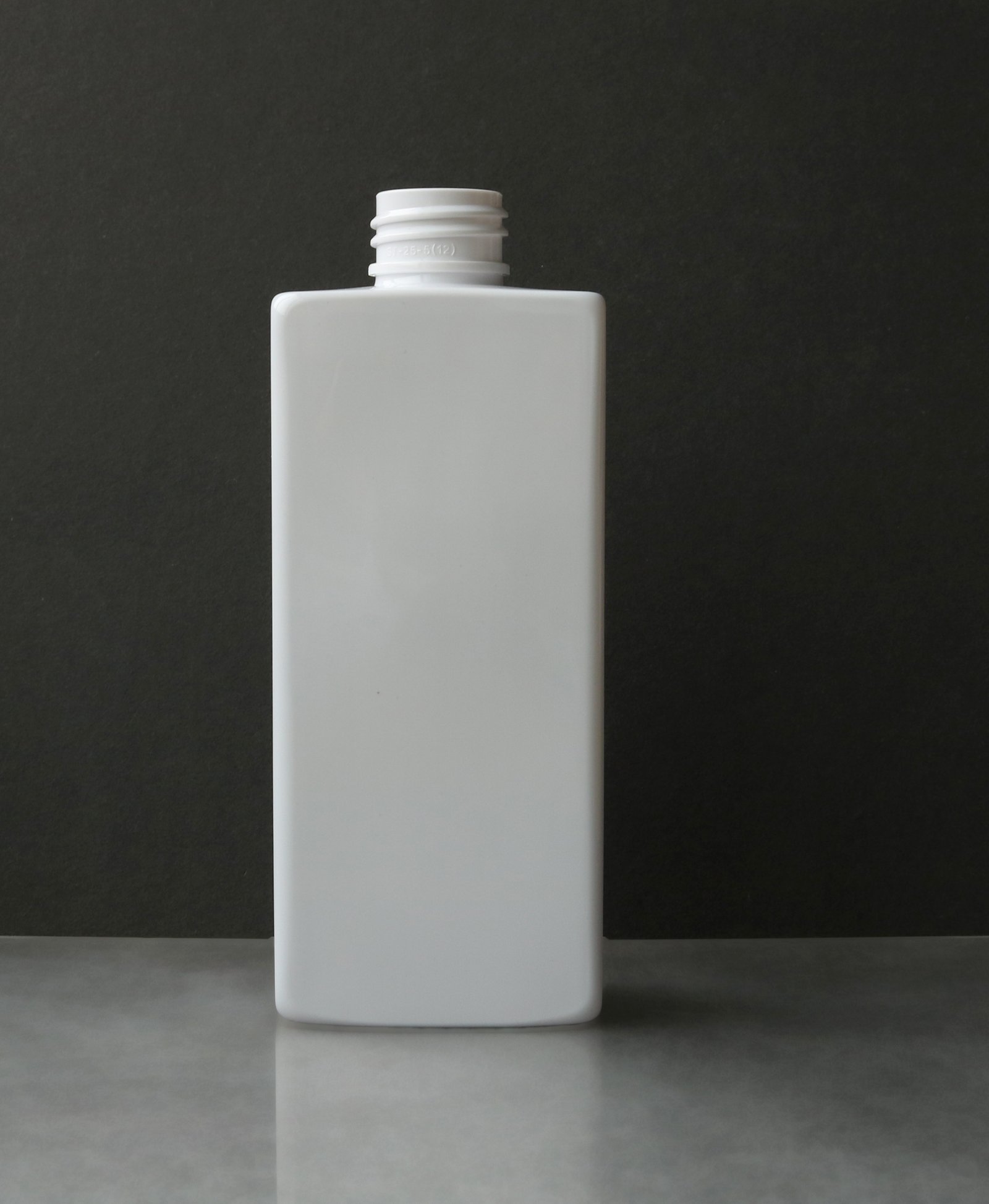

PET Cosmetic Bottle 200ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0407-200. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 200 ml (6.8 fl oz) |
| Overflow Capacity (brimful) | 214 ml (7.2 fl oz) |
| Bottle Weight | 35 g |
| Neck Finish | 24/410 |
| Total Height | 140 mm |
| Shoulder Height | 123 mm |
| Base (W × D) | 55 × 35 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 330 pcs / carton |
| Carton Dimensions (L×W×H) | 56.5 × 43.5 × 44 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0407-200 is a 200 ml PET bottle in the daily face-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

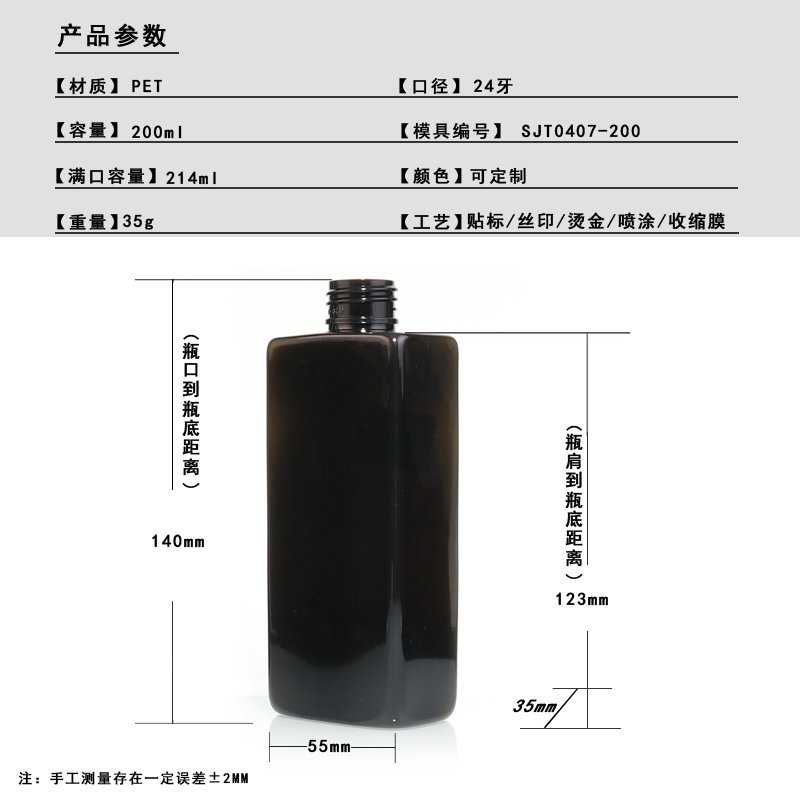

SJT0407-200 is 140 mm tall on a 55 x 35 mm base, so the height is 2.55 times the widest base dimension and the footprint is 19.2 cm².
| Total height | 140 mm |
|---|---|
| Base (W x D) | 55 x 35 mm |
| Footprint | 19.2 cm² |
| Height to widest base | 2.55 : 1 |
| Average content per mm | 1.43 ml |
| Empty weight per 100 mm | 25.00 g |
| Empty weight per litre held | 175 g |
| Headspace above nominal | 14 ml (6.5%) |
SJT0501-200 is the closest thing we mould to SJT0407-200 at 200 ml: 1 mm taller; a 57 x 37 mm base against 55 x 35 mm here; the same 35 g empty. Moving between the two needs no new tooling.
| SKU | SJT0501-200 |
|---|---|
| Capacity | 200 ml (6.8 fl oz) |
| Height | 141 mm |
| Base | 57 × 37 mm |
| Neck | 24 mm |
| Weight | 35 g |
Stated capacity on SJT0407-200 is 200 ml and the brimful figure is 214 ml, so 14 ml of headspace sits under the rim, inside a body 140 mm tall. Holding the filler at a 90% line puts 180 ml in every unit, so a 500 L batch fills 2,777 of them.
| Batch of product | 200 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 2,777 | 97.2 kg |
| 1,000 L | 5,555 | 194.4 kg |
| 5,000 L | 27,777 | 972.2 kg |
5,000 units of SJT0407-200 is 1,000 L of finished product, and 100,000 units is 20,000 L, which takes 3,500 kg of resin at 35 g a bottle. MOQ is per colour rather than per SKU. 140 mm and 200 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 200 ml ≈ 6.8 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 55 × 35 mm base (1.57 : 1 width-to-depth). Two parallel 55 mm faces carry front and back artwork, while the narrow 35 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.55 : 1 (140 mm tall, 55 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 200 ml stated capacity inside a 270 ml rectangular outline — 74 %. A compact envelope relative to the stated capacity — space-efficient in the carton, with less shoulder void. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 35 g body weight = 17.5 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 118 mm — from the base to the 123 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 55 mm flat face → artwork up to 47 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 47 × 118 mm (W × H) flat label on each face, or a wrap label over the 35 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 200 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 200 ml model (195 ml, 190 ml, 210 ml, 220 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0234-220 | 220 ml | 19 g | Ø24 mm | 133 mm | +20 ml larger · same neck |
| SJT0150-210 | 210 ml | 25 g | Ø24 mm | 195 mm | +10 ml larger · same neck |
| SJT0407-200 | 200 ml | 35 g | Ø24 mm | 140 mm | This model |
| SJT0011-195 | 195 ml | 25 g | Ø24 mm | 193 mm | 5 ml smaller · same neck |
| SJT0313-190 | 190 ml | 19 g | Ø24 mm | 108 mm | 10 ml smaller · same neck |
