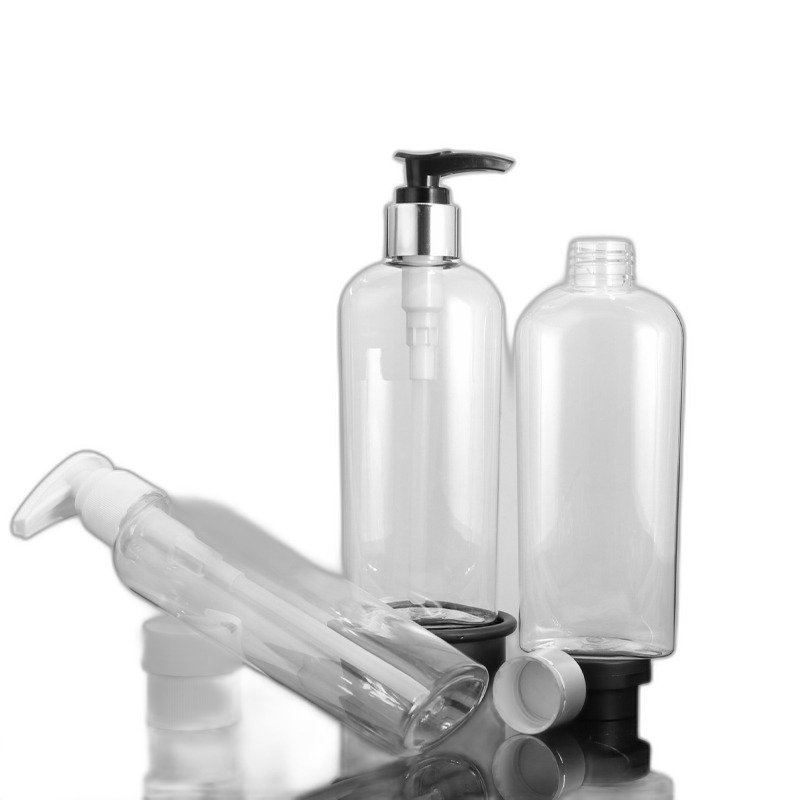

PET Cosmetic Bottle 177ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0548-177. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 177 ml (6.0 fl oz) |
| Bottle Weight | 25 g |
| Neck Finish | 24 mm |
| Total Height | 150 mm |
| Shoulder Height | 133 mm |
| Base (W × D) | 60 × 35 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 270 pcs / carton |
| Carton Dimensions (L×W×H) | 57 × 40 × 47.5 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0548-177 is a 177 ml PET bottle in the daily face-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
SJT0548-177 is 150 mm tall on a 60 x 35 mm base, so the height is 2.50 times the widest base dimension and the footprint is 21.0 cm².
| Total height | 150 mm |
|---|---|
| Base (W x D) | 60 x 35 mm |
| Footprint | 21.0 cm² |
| Height to widest base | 2.50 : 1 |
| Average content per mm | 1.18 ml |
| Empty weight per 100 mm | 16.67 g |
| Empty weight per litre held | 141.2 g |
SJE1629-180 is the closest thing we mould to SJT0548-177 at 177 ml: 19 mm shorter; a 67 x 38 mm base against 60 x 35 mm here; 3 g lighter; a 28 mm neck where this one is 24 mm. Moving between the two needs no new tooling.
| SKU | SJE1629-180 |
|---|---|
| Capacity | 180 ml (6.1 fl oz) |
| Height | 131 mm |
| Base | 67 × 38 mm |
| Neck | 28 mm |
| Weight | 22 g |
Stated capacity on SJT0548-177 is 177 ml, inside a body 150 mm tall. Holding the filler at a 90% line puts 159.3 ml in every unit, so a 500 L batch fills 3,138 of them.
| Batch of product | 177 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 3,138 | 78.5 kg |
| 1,000 L | 6,277 | 156.9 kg |
| 5,000 L | 31,387 | 784.7 kg |
5,000 units of SJT0548-177 is 885 L of finished product, and 100,000 units is 17,700 L, which takes 2,500 kg of resin at 25 g a bottle. MOQ is per colour rather than per SKU. 150 mm and 177 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 177 ml ≈ 6.0 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 60 × 35 mm base (1.71 : 1 width-to-depth). Two parallel 60 mm faces carry front and back artwork, while the narrow 35 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 2.50 : 1 (150 mm tall, 60 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 177 ml stated capacity inside a 315 ml rectangular outline — 56 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 25 g body weight = 14.1 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 128 mm — from the base to the 133 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 60 mm flat face → artwork up to 52 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 52 × 128 mm (W × H) flat label on each face, or a wrap label over the 35 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 177 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 177 ml model (160 ml, 160 ml, 180 ml, 190 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0313-190 | 190 ml | 19 g | Ø24 mm | 108 mm | +13 ml larger · same neck |
| SJT0504-180 | 180 ml | 23 g | Ø20 mm | 175 mm | +3 ml larger |
| SJT0548-177 | 177 ml | 25 g | Ø24 mm | 150 mm | This model |
| SJT0182-160 | 160 ml | 19 g | Ø24 mm | 167 mm | 17 ml smaller · same neck |
| SJT0043-160 | 160 ml | 15 g | Ø20 mm | 156 mm | 17 ml smaller |
