PET Cosmetic Bottle 530ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0550-530. Nominal factory values — custom colors, printing and finishing available on all parameters below.

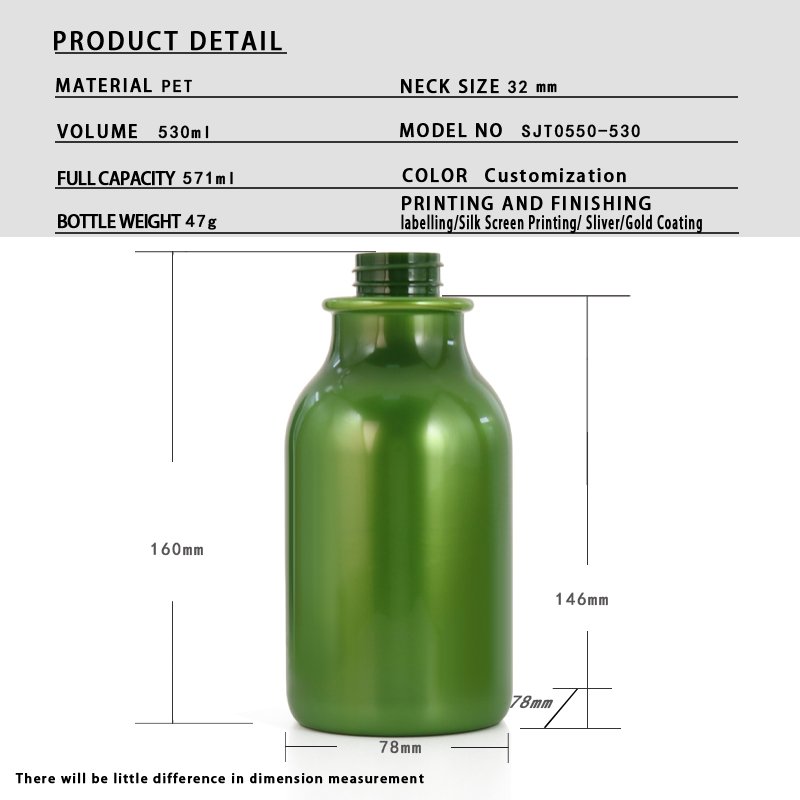

| Dimensions & Capacity | |
| Nominal Capacity | 530 ml (17.9 fl oz) |
| Bottle Weight | 47 g |
| Neck Finish | 32 mm |
| Total Height | 160 mm |
| Shoulder Height | 146 mm |
| Base (W × D) | 78 × 78 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 162 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 49 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large PET bottle: refillable body wash, shampoo, conditioner and household-care volumes. Large formats cut per-unit packaging cost while keeping a clean, premium look.
SJT0550-530 is a 530 ml PET bottle in the family & refill size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for family-size body care, refill packs and value bundles. The 32 mm neck is compatible with standard screw, pump or flip-top closure, s so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 530 ml ≈ 17.9 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 78 mm diameter across the base, 160 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.05 : 1 (160 mm tall, 78 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 530 ml stated capacity inside a 973 ml rectangular outline — 54 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 47 g body weight = 8.9 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 141 mm — from the base to the 146 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 245 mm (π × 78 mm) — a wrap-around label up to 225 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 225 × 141 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 530 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 530 ml model (520 ml, 520 ml, 550 ml, 550 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0294-550 | 550 ml | 48 g | Ø28 mm | 182 mm | +20 ml larger |
| SJT0308-550 | 550 ml | 55 g | Ø32 mm | 143 mm | +20 ml larger · same neck |
| SJT0550-530 | 530 ml | 47 g | Ø32 mm | 160 mm | This model |
| SJT0315-520 | 520 ml | 39 g | Ø28 mm | 151 mm | 10 ml smaller |
| SJT0065-520 | 520 ml | 39 g | Ø28 mm | 217 mm | 10 ml smaller |
