PET Cosmetic Bottle 400ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0596-400. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 400 ml (13.5 fl oz) |
| Bottle Weight | 35 g |
| Neck Finish | 24 mm |
| Total Height | 120 mm |
| Shoulder Height | 104 mm |
| Base (W × D) | 77 × 77 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 144 pcs / carton |
| Carton Dimensions (L×W×H) | 66 × 50 × 38 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.

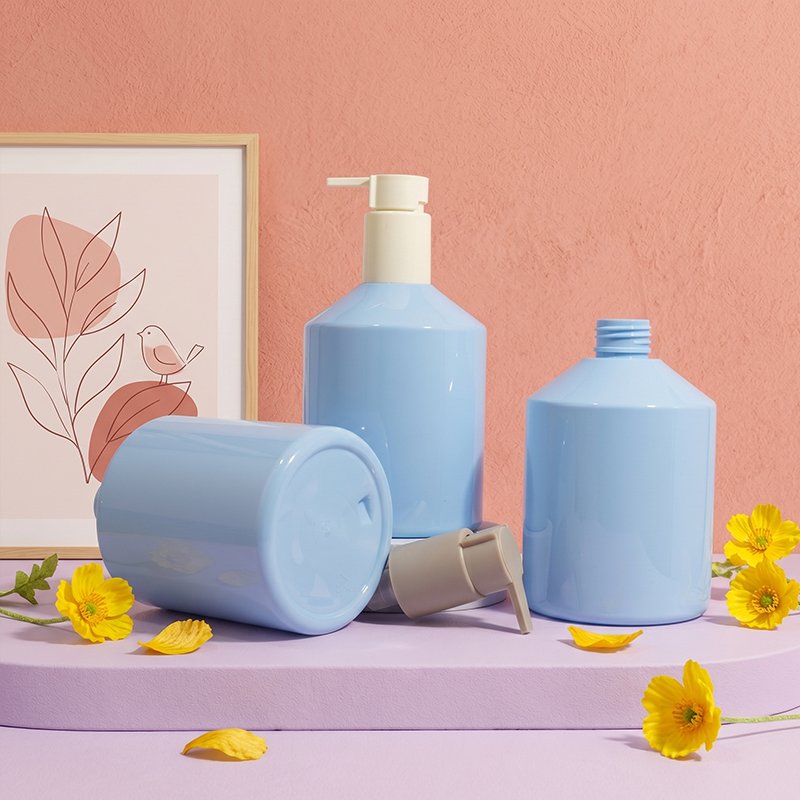

SJT0596-400 is a 400 ml PET bottle in the body & hair-care size range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for body lotions, shampoos, conditioners and shower gels. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

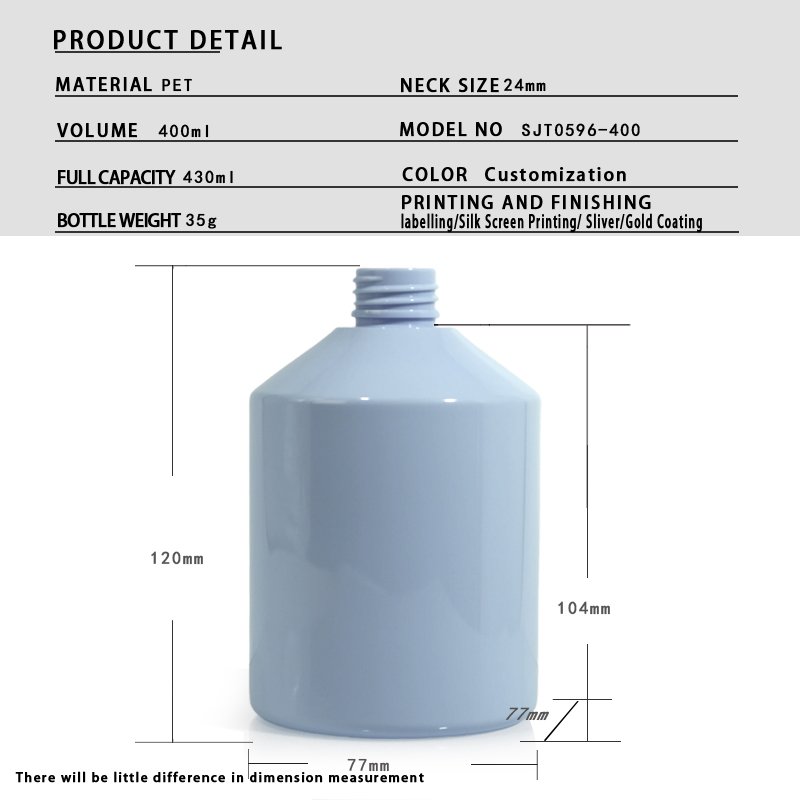

SJT0596-400 is 120 mm tall on a 77 x 77 mm base, so the height is 1.56 times the widest base dimension and the footprint is 59.3 cm².
| Total height | 120 mm |
|---|---|
| Base (W x D) | 77 x 77 mm |
| Footprint | 59.3 cm² |
| Height to widest base | 1.56 : 1 |
| Average content per mm | 3.33 ml |
| Empty weight per 100 mm | 29.17 g |
| Empty weight per litre held | 87.5 g |
SJT0390-400 is the closest thing we mould to SJT0596-400 at 400 ml: 9 mm shorter; a 79 x 79 mm base against 77 x 77 mm here; 4 g heavier; a 28/410 neck where this one is 24 mm. Moving between the two needs no new tooling.
| SKU | SJT0390-400 |
|---|---|
| Capacity | 400 ml (13.5 fl oz) |
| Height | 111 mm |
| Base | 79 × 79 mm |
| Neck | 28/410 |
| Weight | 39 g |
Stated capacity on SJT0596-400 is 400 ml, inside a body 120 mm tall. Holding the filler at a 90% line puts 360 ml in every unit, so a 500 L batch fills 1,388 of them.
| Batch of product | 400 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 1,388 | 48.6 kg |
| 1,000 L | 2,777 | 97.2 kg |
| 5,000 L | 13,888 | 486.1 kg |
5,000 units of SJT0596-400 is 2,000 L of finished product, and 100,000 units is 40,000 L, which takes 3,500 kg of resin at 35 g a bottle. MOQ is per colour rather than per SKU. 120 mm and 400 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 400 ml ≈ 13.5 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 77 mm diameter across the base, 120 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 1.56 : 1 (120 mm tall, 77 mm wide). Low-profile, wide-footed format: the most stable of the three under high-speed filling and the easiest to stack. |
| Fill-to-outline ratio | 400 ml stated capacity inside a 711 ml rectangular outline — 56 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 35 g body weight = 8.8 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 99 mm — from the base to the 104 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 242 mm (π × 77 mm) — a wrap-around label up to 223 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 223 × 99 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 400 ml the Ø24 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 400 ml model (380 ml, 380 ml, 420 ml, 420 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0046-420 | 420 ml | 39 g | Ø28 mm | 147 mm | +20 ml larger |
| SJT0047-420 | 420 ml | 39 g | Ø28 mm | 206 mm | +20 ml larger |
| SJT0596-400 | 400 ml | 35 g | Ø24 mm | 120 mm | This model |
| SJT0499-380 | 380 ml | 39 g | Ø28 mm | 166 mm | 20 ml smaller |
| SJT0302-380 | 380 ml | 55 g | Ø32 mm | 184 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
