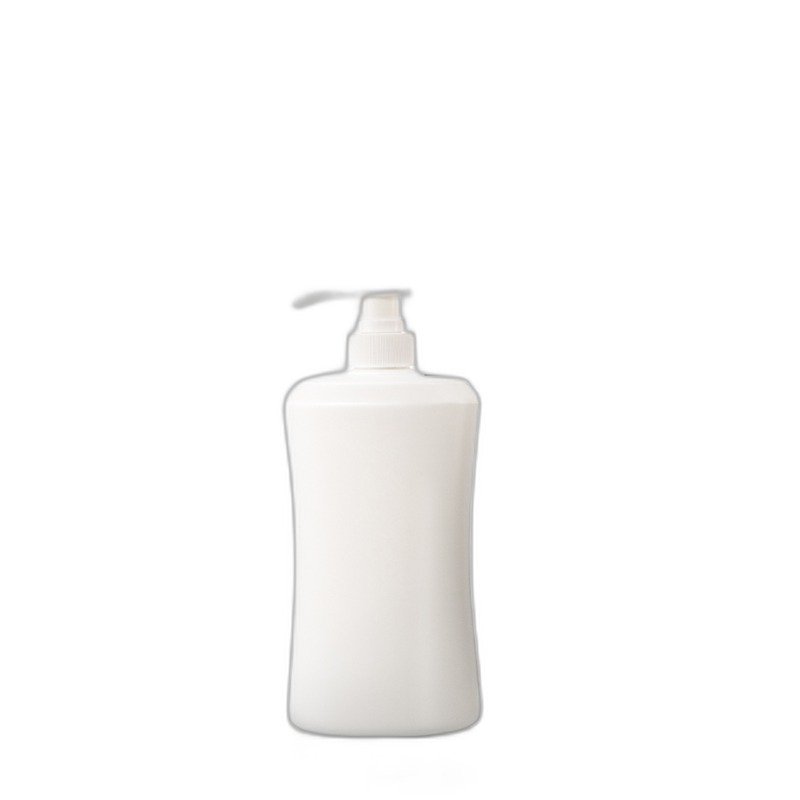

PE Cosmetic Bottle 750ml
Download the complete PE / HDPE bottle catalog PDF.

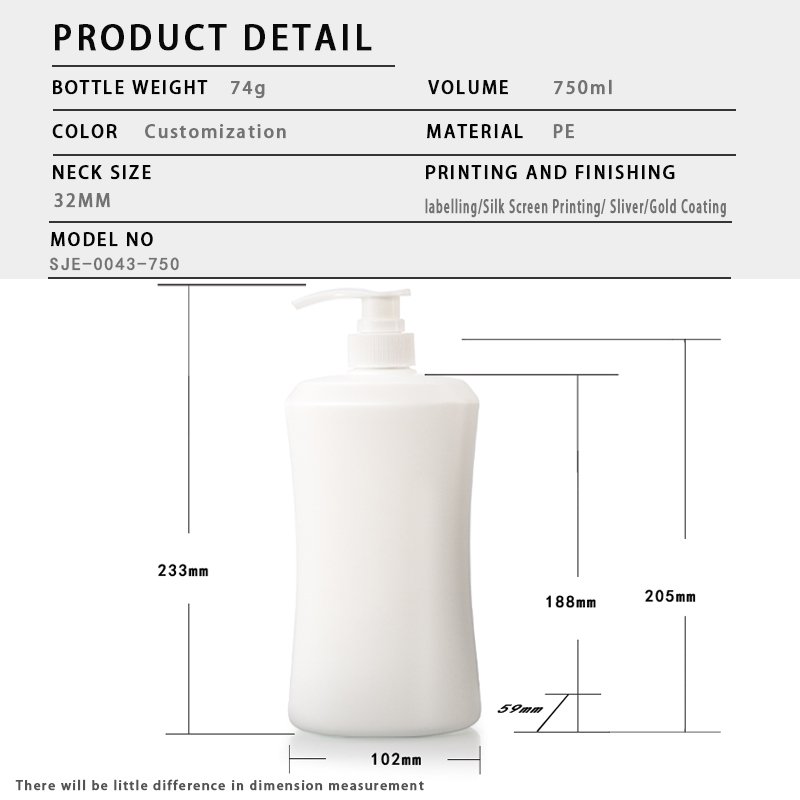

Full engineering parameters for SJE0043-750. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 750 ml (25.4 fl oz) |
| Overflow Capacity (brimful) | 804 ml (27.2 fl oz) |
| Bottle Weight | 73 g |
| Neck Finish | 32 mm |
| Total Height | 205 mm |
| Shoulder Height | 192 mm |
| Base (W × D) | 103 × 60 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this large HDPE bottle: fabric softener, laundry detergent, household cleaners and high-volume refills. HDPE's chemical resistance and durability make it the standard for household-care packaging.
SJE0043-750 is a 750 ml PE / HDPE bottle in the family & refill size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for family-size body care, refill packs and value bundles. The 32 mm neck is compatible with standard screw, pump or flip-top closure, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching standard screw, pump or flip-top closure to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

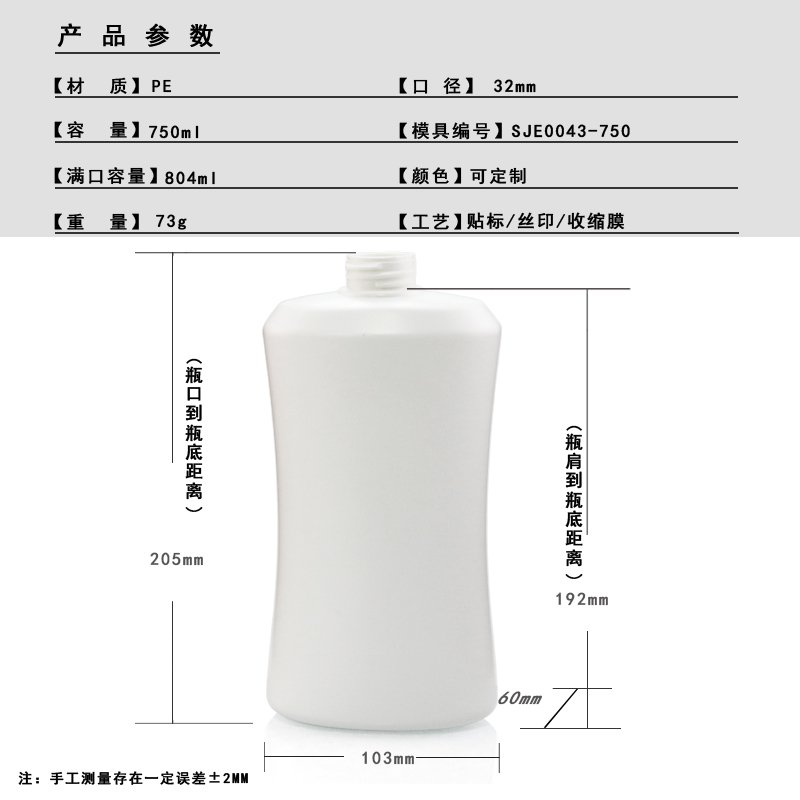

SJE0043-750 is 205 mm tall on a 103 x 60 mm base, so the height is 1.99 times the widest base dimension and the footprint is 61.8 cm².
| Total height | 205 mm |
|---|---|
| Base (W x D) | 103 x 60 mm |
| Footprint | 61.8 cm² |
| Height to widest base | 1.99 : 1 |
| Average content per mm | 3.66 ml |
| Empty weight per 100 mm | 35.61 g |
| Empty weight per litre held | 97.3 g |
| Headspace above nominal | 54 ml (6.7%) |
SJE0102-750 is the closest thing we mould to SJE0043-750 at 750 ml: 9 mm shorter; a 101 x 63 mm base against 103 x 60 mm here; 10 g lighter. Moving between the two needs no new tooling.
| SKU | SJE0102-750 |
|---|---|
| Capacity | 750 ml (25.4 fl oz) |
| Height | 196 mm |
| Base | 101 × 63 mm |
| Neck | 32 mm |
| Weight | 63 g |
Stated capacity on SJE0043-750 is 750 ml and the brimful figure is 804 ml, so 54 ml of headspace sits under the rim, inside a body 205 mm tall. Holding the filler at a 90% line puts 675 ml in every unit, so a 500 L batch fills 740 of them.
| Batch of product | 750 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 740 | 54.0 kg |
| 1,000 L | 1,481 | 108.1 kg |
| 5,000 L | 7,407 | 540.7 kg |
5,000 units of SJE0043-750 is 3,750 L of finished product, and 100,000 units is 75,000 L, which takes 7,300 kg of resin at 73 g a bottle. MOQ is per colour rather than per SKU. 205 mm and 750 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 750 ml ≈ 25.4 fl oz, Ø32 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 103 × 60 mm base (1.72 : 1 width-to-depth). Two parallel 103 mm faces carry front and back artwork, while the narrow 60 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.99 : 1 (205 mm tall, 103 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 750 ml stated capacity inside a 1,267 ml rectangular outline — 59 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 73 g body weight = 9.7 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 187 mm — from the base to the 192 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 103 mm flat face → artwork up to 95 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 95 × 187 mm (W × H) flat label on each face, or a wrap label over the 60 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø32 mm screw neck — the 32/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | high-output lotion pump or wide flip-top cap. |
| Dosing note | At 750 ml the Ø32 mm neck is the standard pairing and is normally run with a high-output pump or a wide-mouth fill opening. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 750 ml model (730 ml, 700 ml, 800 ml, 800 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1670-800 | 800 ml | 76 g | Ø40 mm | 243 mm | +50 ml larger |
| SJE1759-800 | 800 ml | 75 g | Ø32 mm | 216 mm | +50 ml larger · same neck |
| SJE0043-750 | 750 ml | 73 g | Ø32 mm | 205 mm | This model |
| SJE1812-730 | 730 ml | 65 g | Ø32 mm | 190 mm | 20 ml smaller · same neck |

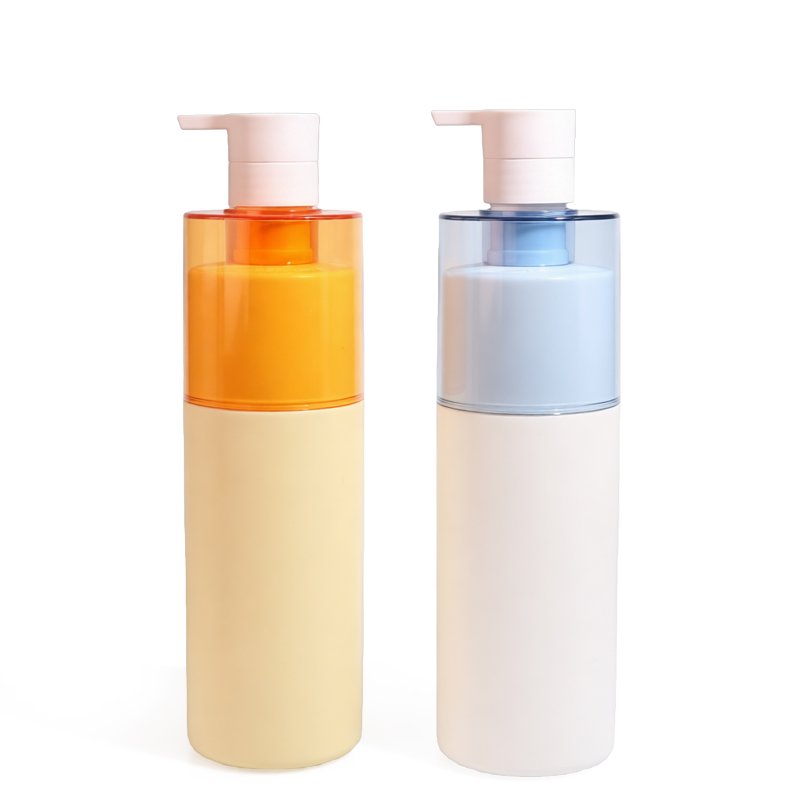

| SJE1901-700 | 700 ml | 72 g | Ø32 mm | 237 mm | 50 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
