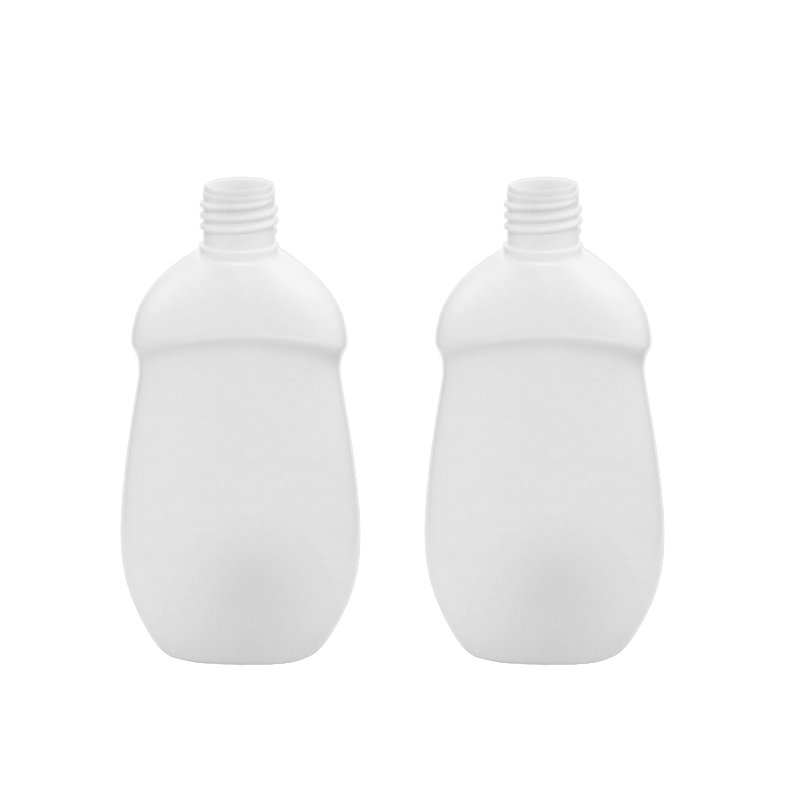

PE Cosmetic Bottle 130ml
Download the complete PE / HDPE bottle catalog PDF.

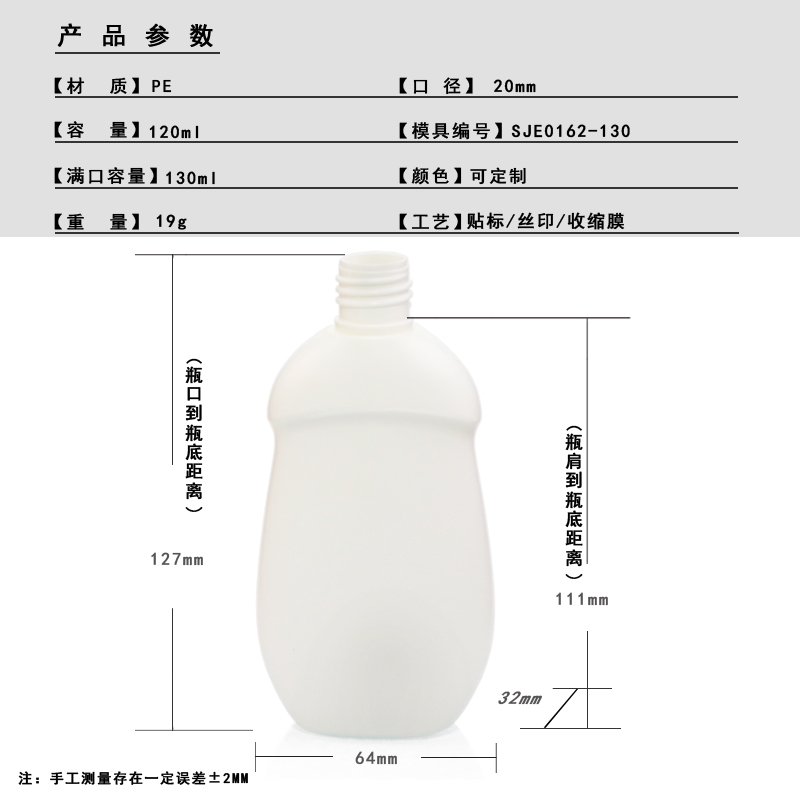

Full engineering parameters for SJE0162-130. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 130 ml (4.4 fl oz) |
| Bottle Weight | 19 g |
| Neck Finish | 20 mm |
| Total Height | 127 mm |
| Shoulder Height | 111 mm |
| Base (W × D) | 64 × 32 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 360 pcs / carton |
| Carton Dimensions (L×W×H) | 65.5 × 40 × 40 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE0162-130 is a 130 ml PE / HDPE bottle in the daily face-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 130 ml ≈ 4.4 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Flat-oval body — 64 × 32 mm base (2.00 : 1 width-to-depth). Two parallel 64 mm faces carry front and back artwork, while the narrow 32 mm sides suit barcode, batch or ingredient panels. |
| Height to width | 1.98 : 1 (127 mm tall, 64 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 130 ml stated capacity inside a 260 ml rectangular outline — 50 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 19 g body weight = 14.6 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 106 mm — from the base to the 111 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Front panel width | 64 mm flat face → artwork up to 56 mm wide with a 4 mm safety margin each side. |
| Recommended maximum label size | ≈ 56 × 106 mm (W × H) flat label on each face, or a wrap label over the 32 mm sides for tamper evidence. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 130 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 130 ml model (125 ml, 125 ml, 150 ml, 150 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0027-150 | 150 ml | 22 g | Ø28 mm | 107 mm | +20 ml larger |
| SJE0101-150 | 150 ml | 18 g | Ø24 mm | 121 mm | +20 ml larger |
| SJE0162-130 | 130 ml | 19 g | Ø20 mm | 127 mm | This model |

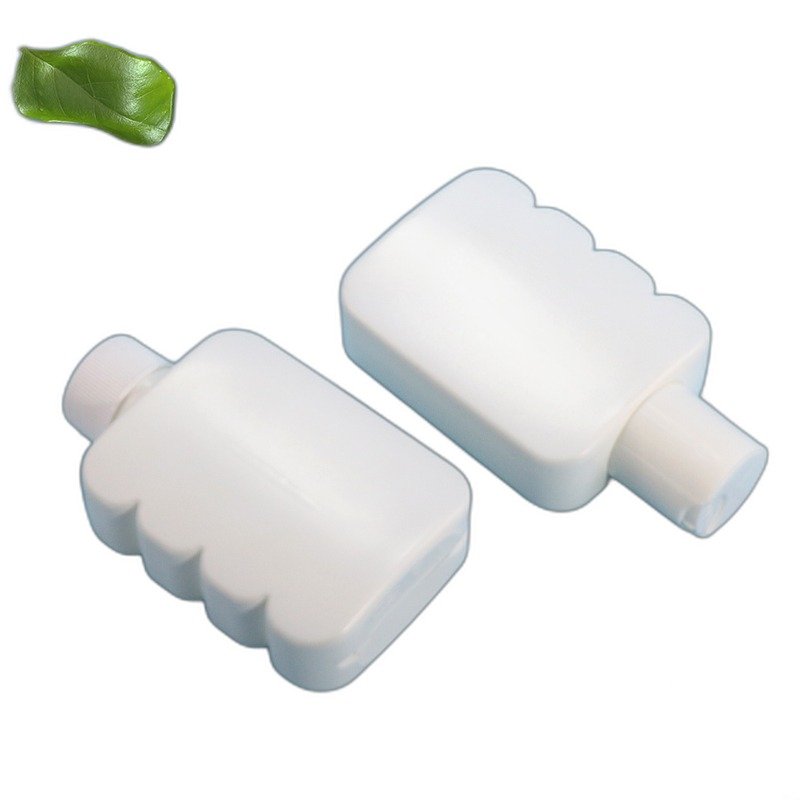

| SJE0214-125 | 125 ml | 23 g | Ø28 mm | 107 mm | 5 ml smaller |

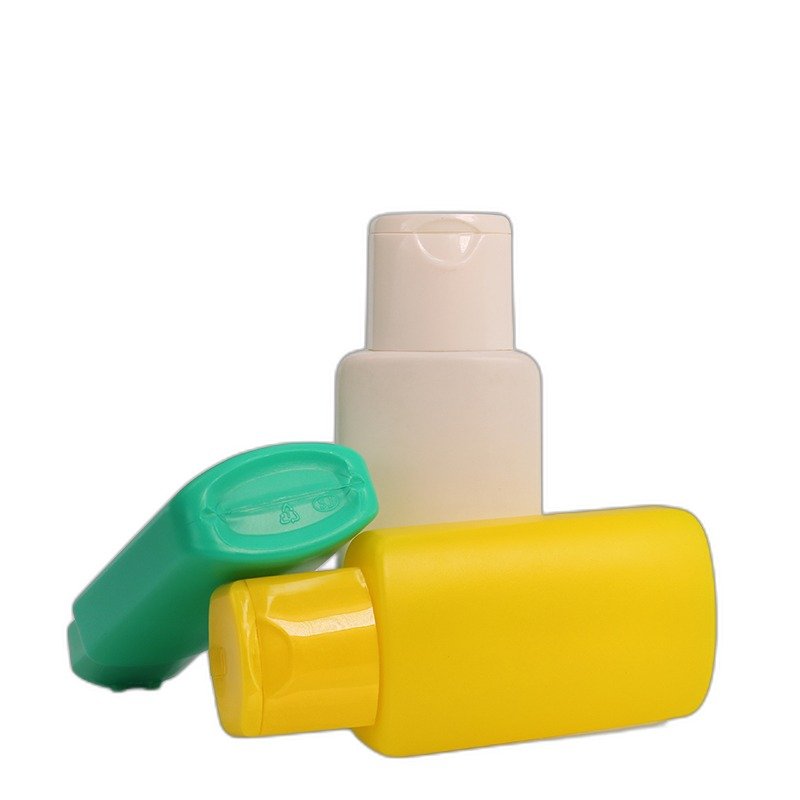

| SJE0034-125 | 125 ml | 17 g | Ø18 mm | 134 mm | 5 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
