PE Cosmetic Bottle 120ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1808-120. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 120 ml (4.1 fl oz) |
| Overflow Capacity (brimful) | 147 ml (5.0 fl oz) |
| Bottle Weight | 15 g |
| Neck Finish | 24/410 |
| Total Height | 109 mm |
| Shoulder Height | 95 mm |
| Base (W × D) | 48 × 48 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 660 pcs / carton |
| Carton Dimensions (L×W×H) | 76 × 50 × 48 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE1808-120 is a 120 ml PE / HDPE bottle in the daily face-care size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for facial serums, essences, toners and daily moisturizers. The 24 mm neck is compatible with a 24/410 lotion pump, sprayer or flip-top cap, so it adapts to pump, spray or screw formats without mold cha so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 24/410 lotion pump, sprayer or flip-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

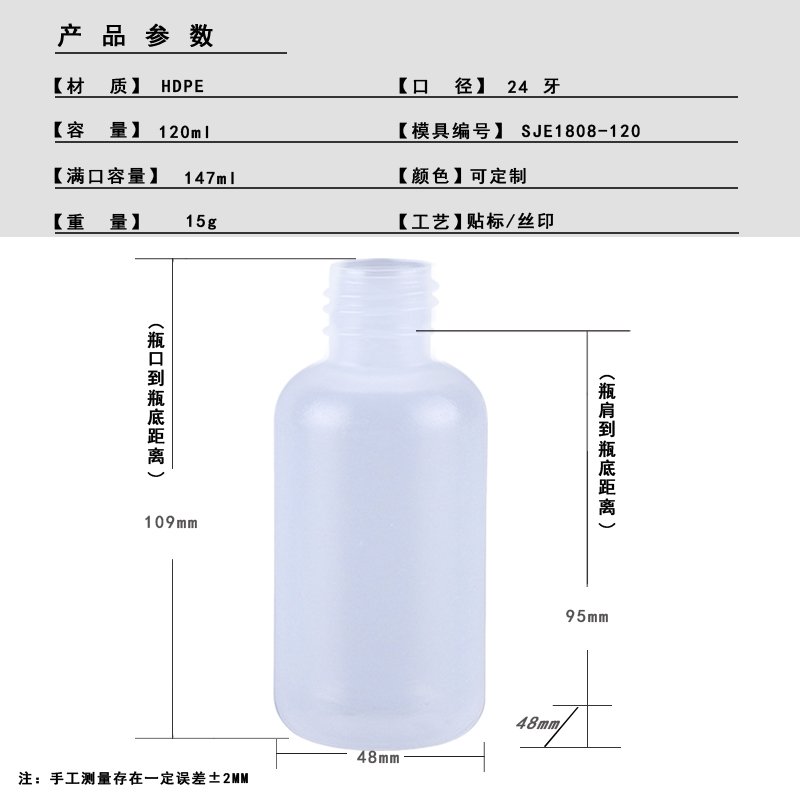

SJE1808-120 is 109 mm tall on a 48 x 48 mm base, so the height is 2.27 times the widest base dimension and the footprint is 23.0 cm².
| Total height | 109 mm |
|---|---|
| Base (W x D) | 48 x 48 mm |
| Footprint | 23.0 cm² |
| Height to widest base | 2.27 : 1 |
| Average content per mm | 1.10 ml |
| Empty weight per 100 mm | 13.76 g |
| Empty weight per litre held | 125 g |
| Headspace above nominal | 27 ml (18.4%) |
SJT0319-120 is the closest thing we mould to SJE1808-120 at 120 ml: 2 mm taller; a 50 x 50 mm base against 48 x 48 mm here; 5 g heavier; a 28/410 neck where this one is 24 mm. Moving between the two needs no new tooling.
| SKU | SJT0319-120 |
|---|---|
| Capacity | 120 ml (4.1 fl oz) |
| Height | 111 mm |
| Base | 50 × 50 mm |
| Neck | 28/410 |
| Weight | 20 g |
Stated capacity on SJE1808-120 is 120 ml and the brimful figure is 147 ml, so 27 ml of headspace sits under the rim, inside a body 109 mm tall. Holding the filler at a 90% line puts 108 ml in every unit, so a 500 L batch fills 4,629 of them.
| Batch of product | 120 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 4,629 | 69.4 kg |
| 1,000 L | 9,259 | 138.9 kg |
| 5,000 L | 46,296 | 694.4 kg |
5,000 units of SJE1808-120 is 600 L of finished product, and 100,000 units is 12,000 L, which takes 1,500 kg of resin at 15 g a bottle. MOQ is per colour rather than per SKU. 109 mm and 120 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 120 ml ≈ 4.1 fl oz, Ø24 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 48 mm diameter across the base, 109 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.27 : 1 (109 mm tall, 48 mm wide). Mid-height format: stable on standard filling and labelling lines without rail changes. |
| Fill-to-outline ratio | 120 ml stated capacity inside a 251 ml rectangular outline — 48 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 15 g body weight = 12.5 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 90 mm — from the base to the 95 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 151 mm (π × 48 mm) — a wrap-around label up to 139 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 139 × 90 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø24 mm screw neck — the 24/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, fine-mist sprayer, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 120 ml the Ø24 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 120 ml model (105 ml, 100 ml, 125 ml, 125 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE0034-125 | 125 ml | 17 g | Ø18 mm | 134 mm | +5 ml larger |
| SJE0214-125 | 125 ml | 23 g | Ø28 mm | 107 mm | +5 ml larger |
| SJE1808-120 | 120 ml | 15 g | Ø24 mm | 109 mm | This model |
| SJE0133-105 | 105 ml | 20 g | Ø24 mm | 137 mm | 15 ml smaller · same neck |
| SJE1887-100 | 100 ml | 13 g | Ø20 mm | 92 mm | 20 ml smaller |
