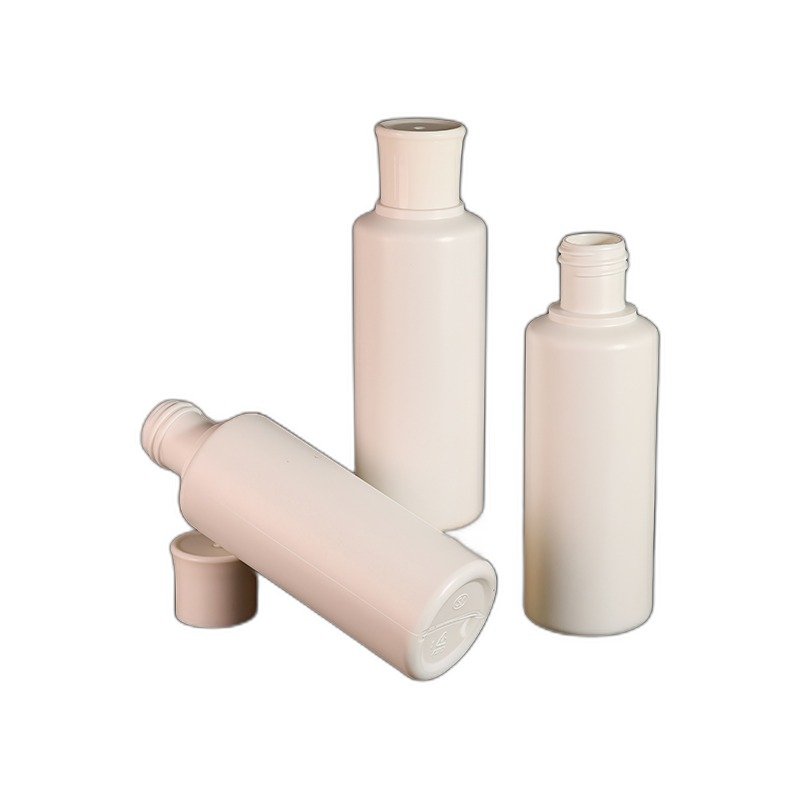

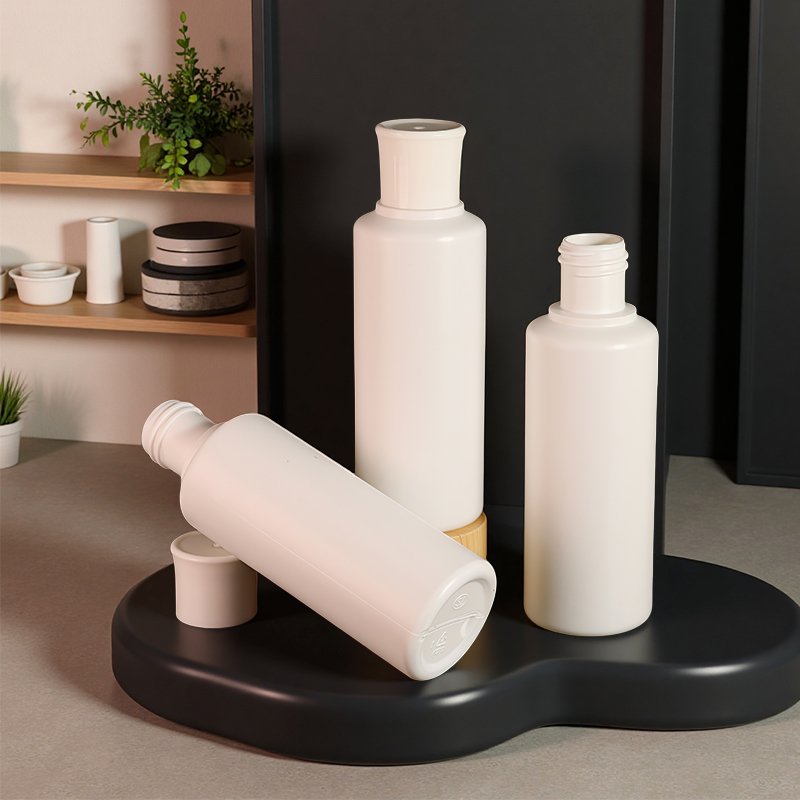

PE Cosmetic Bottle 80ml
Download the complete PE / HDPE bottle catalog PDF.
Full engineering parameters for SJE1882-80. Nominal factory values — custom colors, printing and finishing available on all parameters below.

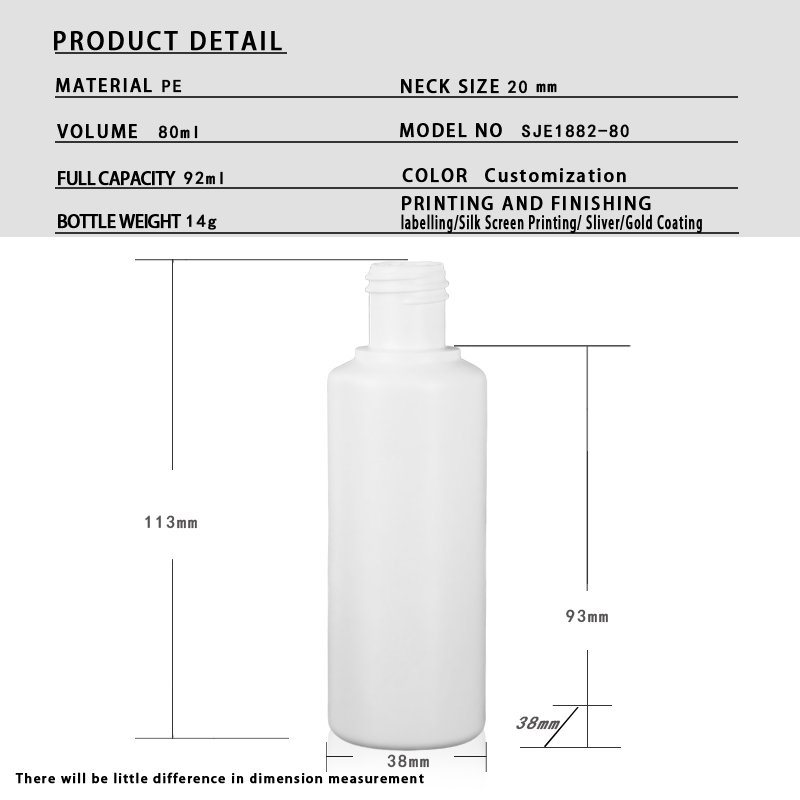

| Dimensions & Capacity | |
| Nominal Capacity | 80 ml (2.7 fl oz) |
| Bottle Weight | 14 g |
| Neck Finish | 20 mm |
| Total Height | 113 mm |
| Shoulder Height | 93 mm |
| Base (W × D) | 38 × 38 mm |
| Material & Compliance | |
| Material | PE/HDPE |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | 420 pcs / carton |
| Carton Dimensions (L×W×H) | 55 × 40 × 36 cm |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this small HDPE bottle: travel-size shampoo and conditioner, hand wash, lotion and personal-care samples. Squeezable HDPE is lightweight and drop-safe for travel and retail.
SJE1882-80 is a 80 ml PE / HDPE bottle in the travel & trial size range. It suits sunscreen, opaque lotions, body wash and chemical-sensitive formulations, and is commonly specified for travel-size toiletry, trial kits, hotel amenities and promotional samples. The 20 mm neck is compatible with a 20/410 lotion pump or disc-top cap, so it adapts to pump, spray or screw formats without mold changes.
For branding, silk-screen, hot-stamp and in-mold labeling are available on this PE / HDPE body. Pair it with a matching a 20/410 lotion pump or disc-top cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.
SJE1882-80 is 113 mm tall on a 38 x 38 mm base, so the height is 2.97 times the widest base dimension and the footprint is 14.4 cm².
| Total height | 113 mm |
|---|---|
| Base (W x D) | 38 x 38 mm |
| Footprint | 14.4 cm² |
| Height to widest base | 2.97 : 1 |
| Average content per mm | 0.71 ml |
| Empty weight per 100 mm | 12.39 g |
| Empty weight per litre held | 175 g |
SJT0522-80 is the closest thing we mould to SJE1882-80 at 80 ml: 13 mm shorter; a 39 x 39 mm base against 38 x 38 mm here; 2 g heavier; a 24 mm neck where this one is 20 mm. Moving between the two needs no new tooling.
| SKU | SJT0522-80 |
|---|---|
| Capacity | 80 ml (2.7 fl oz) |
| Height | 100 mm |
| Base | 39 × 39 mm |
| Neck | 24 mm |
| Weight | 16 g |
Stated capacity on SJE1882-80 is 80 ml, inside a body 113 mm tall. Holding the filler at a 90% line puts 72 ml in every unit, so a 500 L batch fills 6,944 of them.
| Batch of product | 80 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 6,944 | 97.2 kg |
| 1,000 L | 13,888 | 194.4 kg |
| 5,000 L | 69,444 | 972.2 kg |
5,000 units of SJE1882-80 is 400 L of finished product, and 100,000 units is 8,000 L, which takes 1,400 kg of resin at 14 g a bottle. MOQ is per colour rather than per SKU. 113 mm and 80 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PE / HDPE, 80 ml ≈ 2.7 fl oz, Ø20 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 38 mm diameter across the base, 113 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.97 : 1 (113 mm tall, 38 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 80 ml stated capacity inside a 163 ml rectangular outline — 49 %. Generous wall and shoulder clearance — a heavier, more premium feel in hand and more room for a deep shoulder radius. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 14 g body weight = 17.5 g per 100 ml. Heavy-wall range: chosen when the bottle must feel substantial or survive repeated squeezing. |
| Label & decoration zone | |
| Usable label height | Up to 88 mm — from the base to the 93 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 119 mm (π × 38 mm) — a wrap-around label up to 110 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 110 × 88 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø20 mm screw neck — the 20/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | fine-mist sprayer, treatment pump or disc-top cap. |
| Dosing note | At 80 ml the Ø20 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PE / HDPE formats to this 80 ml model (70 ml, 60 ml, 85 ml, 85 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJE1725-85 | 85 ml | 12 g | Ø28 mm | 108 mm | +5 ml larger |
| SJE1902-85 | 85 ml | 21 g | Ø23 mm | 96 mm | +5 ml larger |
| SJE1882-80 | 80 ml | 14 g | Ø20 mm | 113 mm | This model |
| SJE1607-70 | 70 ml | 13 g | Ø20 mm | 100 mm | 10 ml smaller · same neck |
| SJE1807-60 | 60 ml | 10 g | Ø24 mm | 90 mm | 20 ml smaller |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
