PET Cosmetic Bottle 250ml
Download the complete PET bottle catalog PDF for offline viewing.
Full engineering parameters for SJT0566-250. Nominal factory values — custom colors, printing and finishing available on all parameters below.
| Dimensions & Capacity | |
| Nominal Capacity | 250 ml (8.5 fl oz) |
| Bottle Weight | 25 g |
| Neck Finish | 28 mm |
| Total Height | 140 mm |
| Shoulder Height | 123 mm |
| Base (W × D) | 55 × 55 mm |
| Material & Compliance | |
| Material | PET |
| Resin Grade | Food-contact, virgin (non-recycled) |
| Certifications | ISO 9001 / FDA / SGS |
| Recyclable | Yes |
| Packing & Order Info | |
| Carton Pack | Confirmed per order — contact us for exact carton specs |
| MOQ | 5,000 units |
| Lead Time | 15–25 days |
Typical applications for this mid-size PET bottle: body lotion, hand wash, facial mist, shampoo and daily skincare. Its clarity and light weight suit retail shelves, while the neck accepts lotion pumps, sprayers or flip-top closures.
SJT0566-250 is a 250 ml PET bottle in the mid-format skincare range. It suits clear toners, facial mists, shampoos and lightweight daily-care bottles, and is commonly specified for face creams, lotions, cleansers and mid-size skincare. The 28 mm neck is compatible with a 28/410 lotion pump, trigger or screw cap, so it adapts to pump, spray or screw formats wi so it adapts to pump, spray or screw formats without mold changes.
For branding, UV printing, hot-stamp and shrink sleeve are available on this PET body. Pair it with a matching a 28/410 lotion pump, trigger or screw cap to complete a shelf-ready package at a 5,000 units MOQ, produced on ISO 9001 / FDA / SGS certified lines.

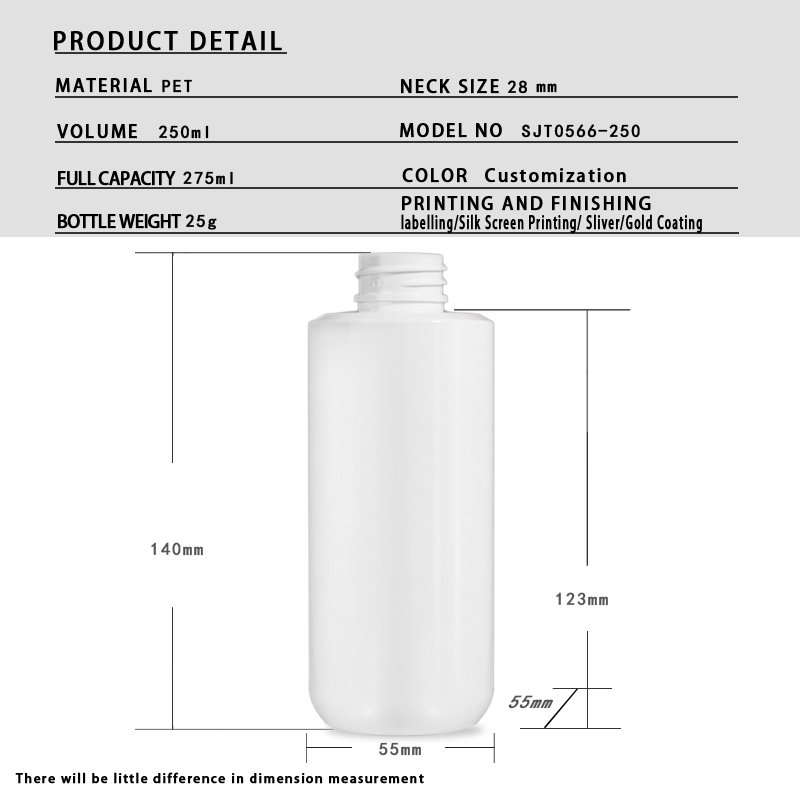

SJT0566-250 is 140 mm tall on a 55 x 55 mm base, so the height is 2.55 times the widest base dimension and the footprint is 30.2 cm².
| Total height | 140 mm |
|---|---|
| Base (W x D) | 55 x 55 mm |
| Footprint | 30.2 cm² |
| Height to widest base | 2.55 : 1 |
| Average content per mm | 1.79 ml |
| Empty weight per 100 mm | 17.86 g |
| Empty weight per litre held | 100 g |
SJT0474-250 is the closest thing we mould to SJT0566-250 at 250 ml: 5 mm taller; 2 g heavier. Moving between the two needs no new tooling.
| SKU | SJT0474-250 |
|---|---|
| Capacity | 250 ml (8.5 fl oz) |
| Height | 145 mm |
| Base | 55 × 55 mm |
| Neck | - |
| Weight | 27 g |
Stated capacity on SJT0566-250 is 250 ml, inside a body 140 mm tall. Holding the filler at a 90% line puts 225 ml in every unit, so a 500 L batch fills 2,222 of them.
| Batch of product | 250 ml units at 90% | Resin for those units |
|---|---|---|
| 500 L | 2,222 | 55.5 kg |
| 1,000 L | 4,444 | 111.1 kg |
| 5,000 L | 22,222 | 555.5 kg |
5,000 units of SJT0566-250 is 1,250 L of finished product, and 100,000 units is 25,000 L, which takes 2,500 kg of resin at 25 g a bottle. MOQ is per colour rather than per SKU. 140 mm and 250 ml formats can share one colour. Lead time is 15–30 days from sample sign-off and deposit.
Everything below is calculated from the nominal dimensions in the specification table above (PET, 250 ml ≈ 8.5 fl oz, Ø28 mm neck). These figures are engineering guidance for label sizing, closure matching and freight planning — they are not a separate product specification, and final tolerances are confirmed on your approved sample.
| Body geometry | |
| Body shape | Round body — 55 mm diameter across the base, 140 mm tall overall. A round format prints and labels evenly from any angle and reads as a premium cosmetic silhouette. |
| Height to width | 2.55 : 1 (140 mm tall, 55 mm wide). Tall profile: the height carries shelf presence while the carton footprint per unit stays small. |
| Fill-to-outline ratio | 250 ml stated capacity inside a 424 ml rectangular outline — 59 %. Typical wall and shoulder allowance for an injection- or extrusion-blown bottle of this size. Fill line is normally set at 90–95 % of stated capacity. |
| Unit weight | 25 g body weight = 10.0 g per 100 ml. Mid-weight range: the balance most buyers settle on between hand-feel and freight cost. |
| Label & decoration zone | |
| Usable label height | Up to 118 mm — from the base to the 123 mm shoulder line, less a 5 mm base transition. Taller artwork runs onto the shoulder with a curved-label option. |
| Body circumference | 173 mm (π × 55 mm) — a wrap-around label up to 159 mm wide fits with seam clearance. |
| Recommended maximum label size | ≈ 159 × 118 mm (W × H) wrap label, or a two-panel front/back set on the same circumference. |
| Neck & closure | |
| Neck finish | Ø28 mm screw neck — the 28/410 industry standard, one of the most widely stocked closure sizes worldwide. |
| Dispensing options | lotion pump, flip-top cap, disc-top cap or screw cap. |
| Dosing note | At 250 ml the Ø28 mm neck is the standard pairing and is normally run with a single- or double-dose pump. Tell us the dose you need per application (ml per stroke) and we match the pump or sprayer output to it. |
Nearest PET formats to this 250 ml model (248 ml, 248 ml, 260 ml, 260 ml), so you can compare a capacity step up or down without leaving the family. Every row is a stocked SKU with its own page and drawings.
| SKU | Capacity | Weight | Neck | Height | Difference |
| SJT0001-260 | 260 ml | 25 g | Ø24 mm | 148 mm | +10 ml larger |
| SJT0031-260 | 260 ml | 30 g | Ø24 mm | 172 mm | +10 ml larger |
| SJT0566-250 | 250 ml | 25 g | Ø28 mm | 140 mm | This model |
| SJT0254-248 | 248 ml | 30 g | Ø24 mm | 150 mm | 2 ml smaller |
| SJT0129-248 | 248 ml | 25 g | Ø28 mm | 171 mm | 2 ml smaller · same neck |
Tell us your quantity and target market — our engineering team replies within 2 working hours with pricing, lead time and samples. No registration required.
